1/2" Split Valve – Band Type

1/2" Split Valve – Band Type: Strength, Scale & Seamless Compatibility

Designed for high-capacity HVAC systems, our company’s 1/2” Band-Type Split Valve delivers enhanced flow control with robust brass construction and dual-thread precision. Ideal for outdoor unit installations, this valve brings together durability and flexible line positioning with a unique pipe-to-valve mounting angle.

Brass Durability
Engineered from high-quality brass, the valve body ensures corrosion resistance, mechanical strength, and consistent sealing performance — even under prolonged refrigerant pressure cycles.

Pure Copper Precision

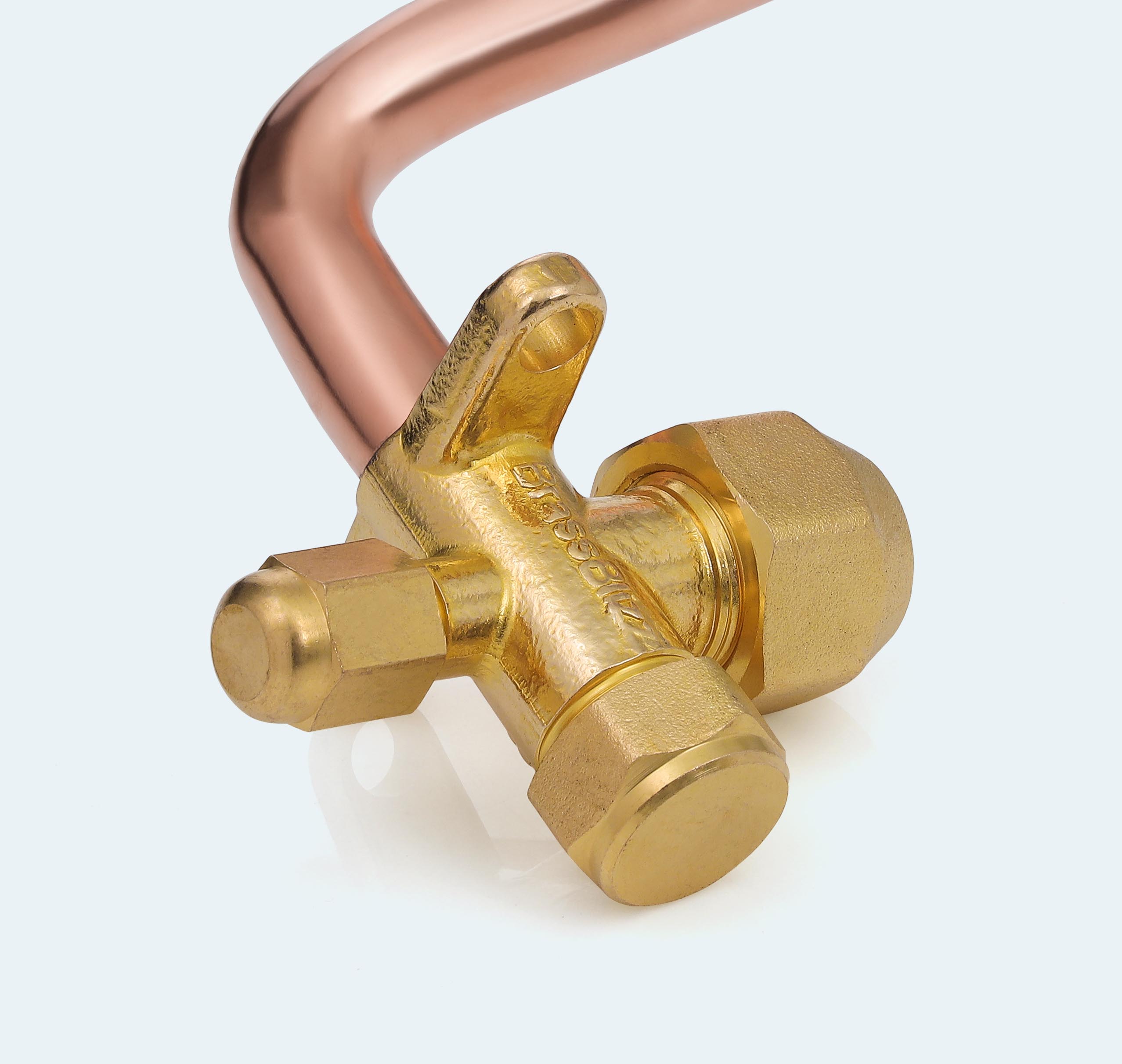

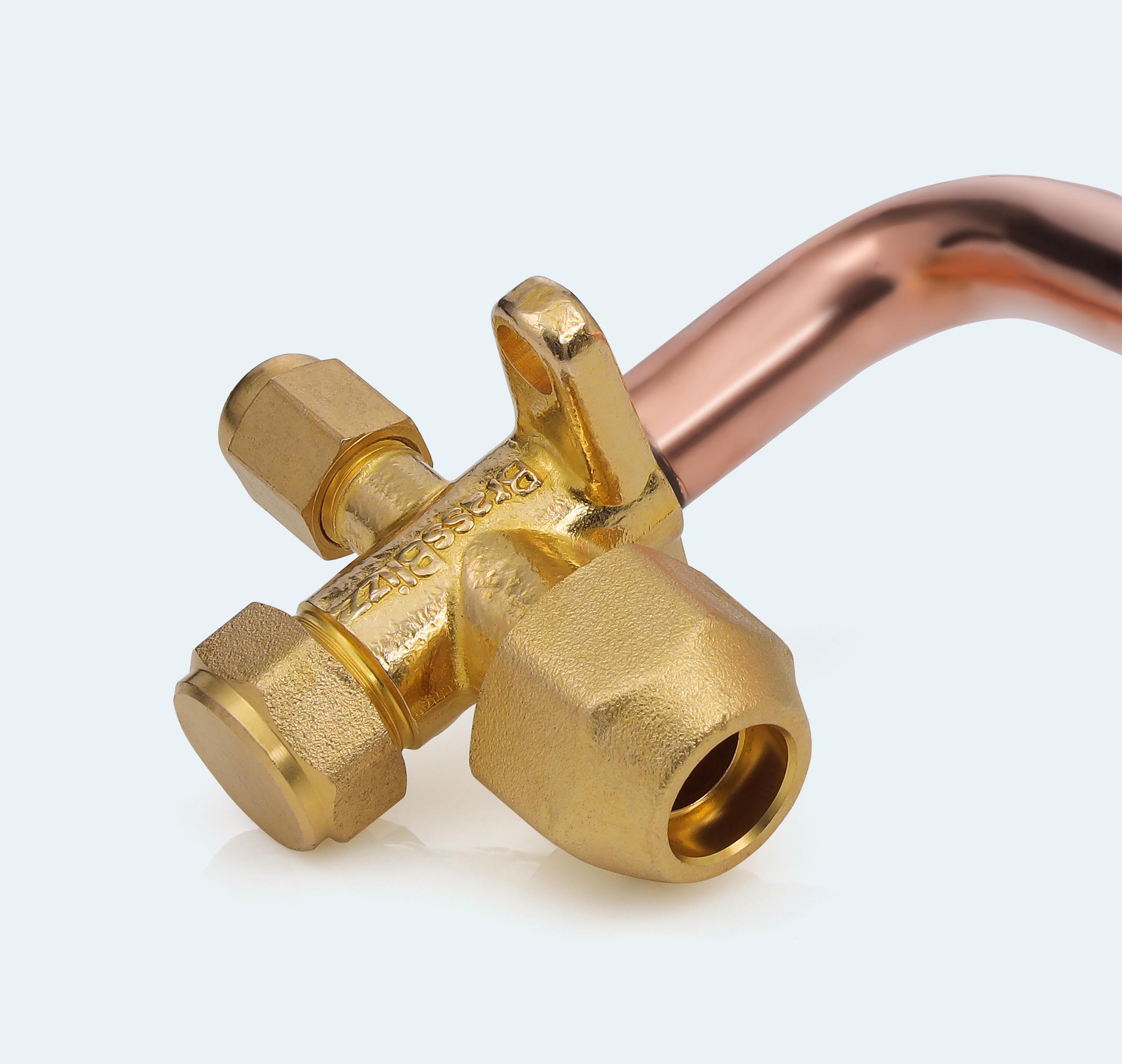

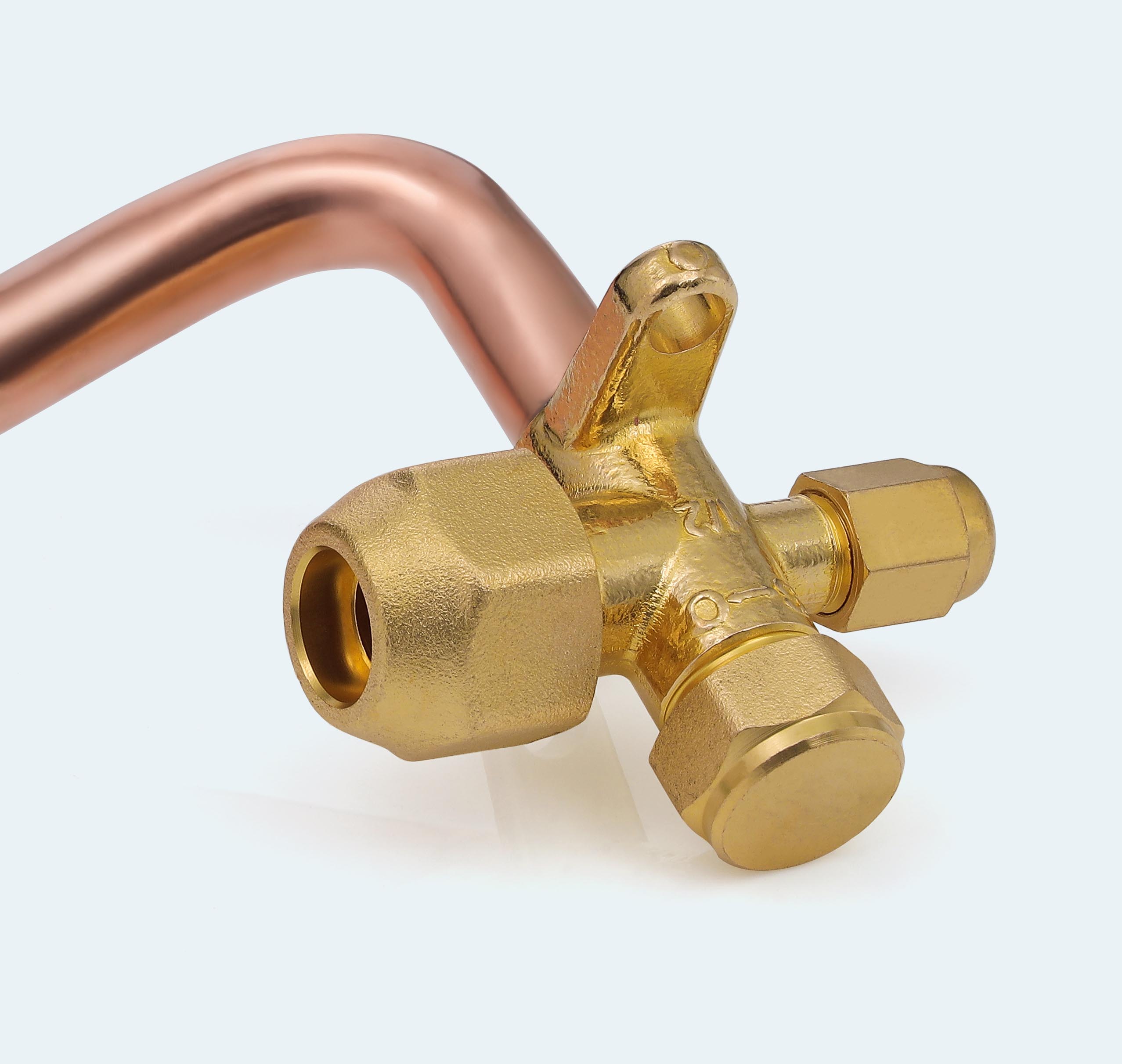

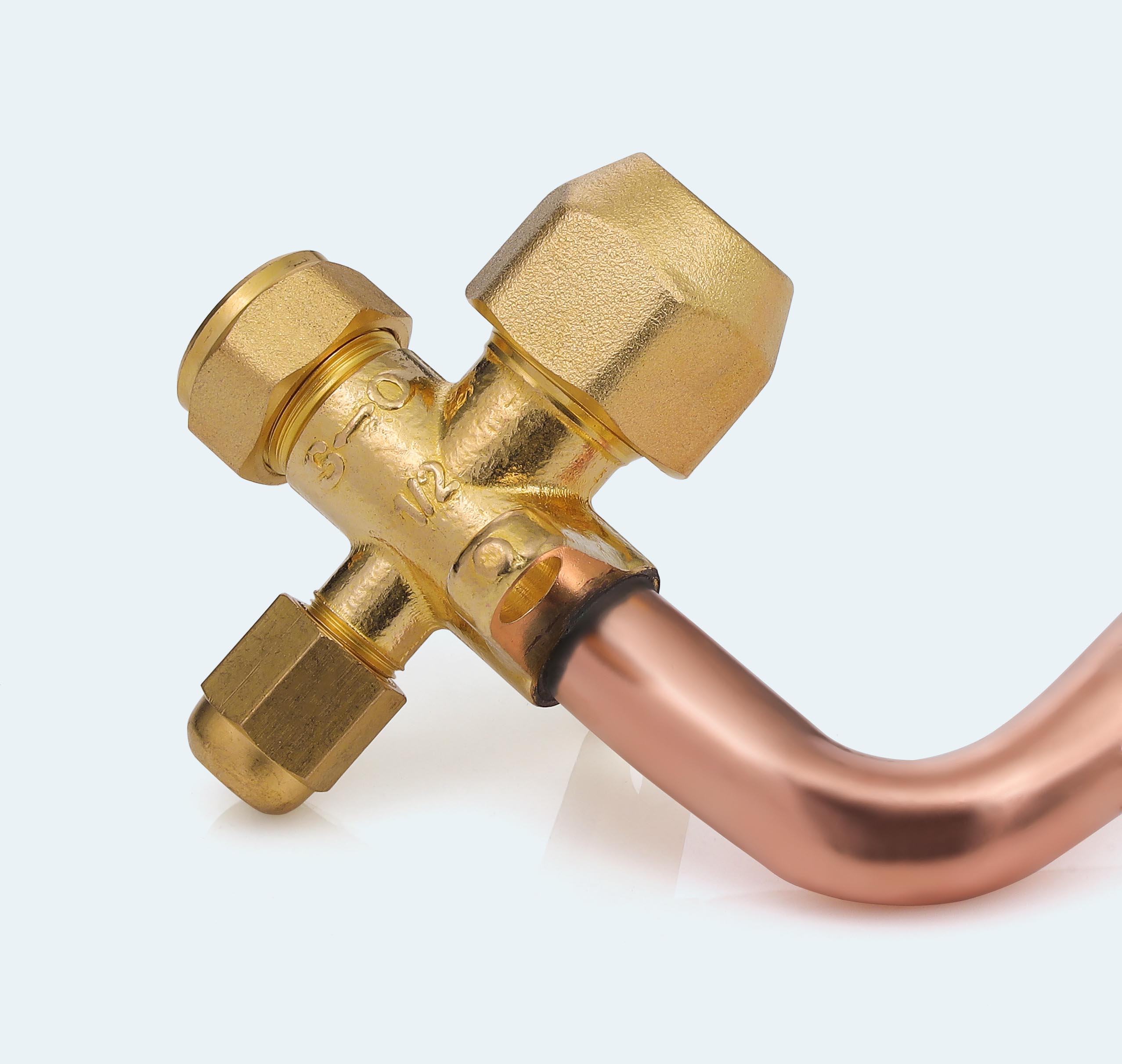

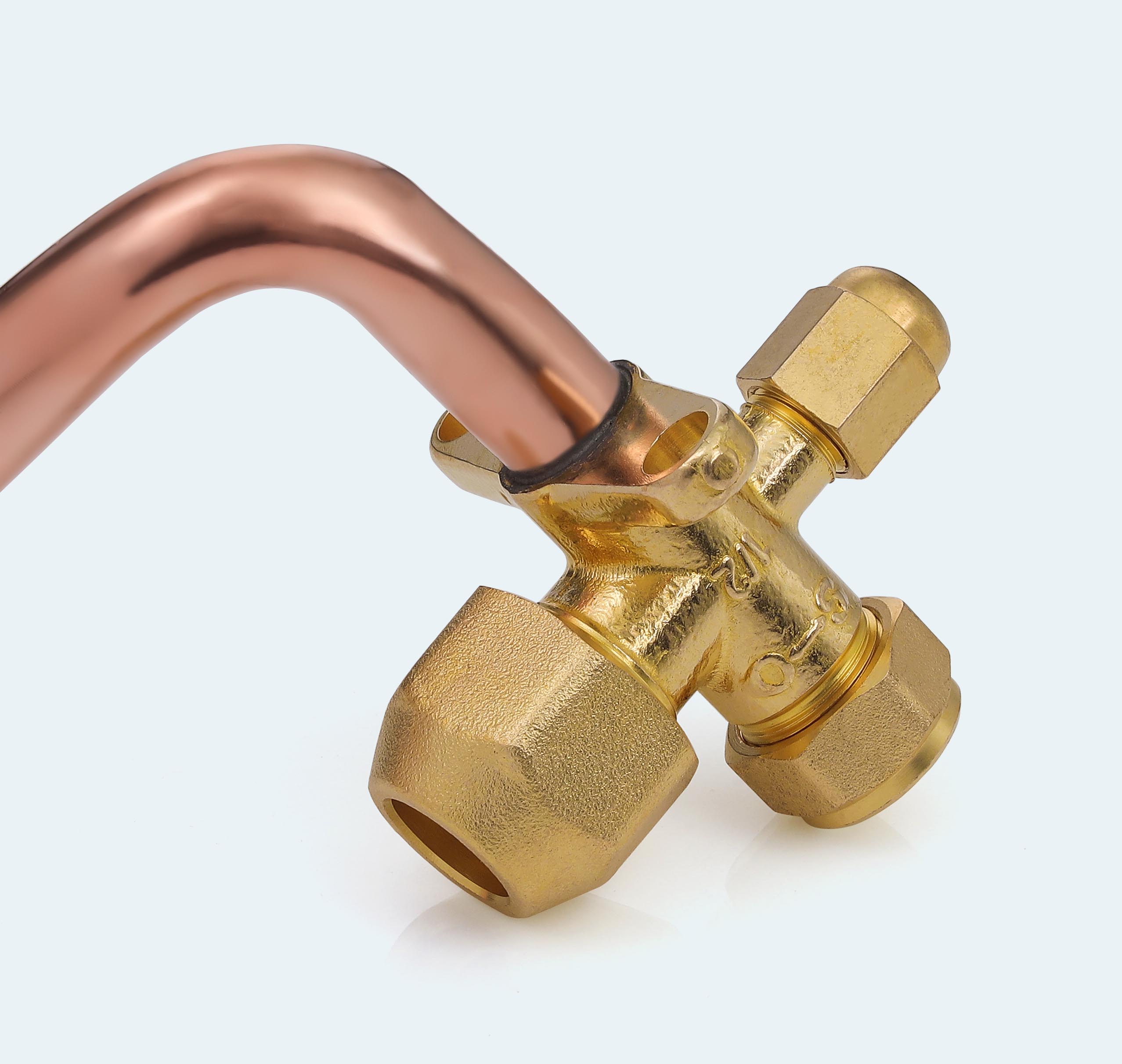

The 90° bent pipe is made from 98% pure 23G gauge copper, carefully shaped for smooth refrigerant flow and brazing-ready application. Its 45° mounted angle to the valve makes it exceptionally installation-friendly in angular setups.

Brazing Mastery
Our company applies advanced induction brazing to securely bond brass and copper, forming a single, leak-free component built for high-performance HVAC usage.

Dual Thread Integration
This valve features:

• 7/16"-20 UNF for standard 1/4 charging hose

• 3/4"-16 UNF for flared copper pipe with nut assembly

Heavy-Duty Performance
Built for systems using R22, R410A, and R32, this valve can withstand pressures of up to 800 PSI, making it suitable for residential and light-commercial units.

Quality Checked
Weighing 190.00 grams ± 1.00 gram, each valve is thoroughly inspected for dimensional accuracy, thread integrity, and structural finish before packaging.

Applications

• Split AC units (2 to 3 Ton range)

• Outdoor units with angled copper line connections

• Dual-thread refrigerant line assemblies

Packaging
Delivered in custom-branded cardboard boxes that ensure protection during shipping and secure storage.

Note: Designed specifically for refrigerant systems. Not intended for water or unrelated fluid use.
