3/8" Split Valve – Band Type

3/8" Split Valve – Band Type: Dual-Thread Power with Angled Precision

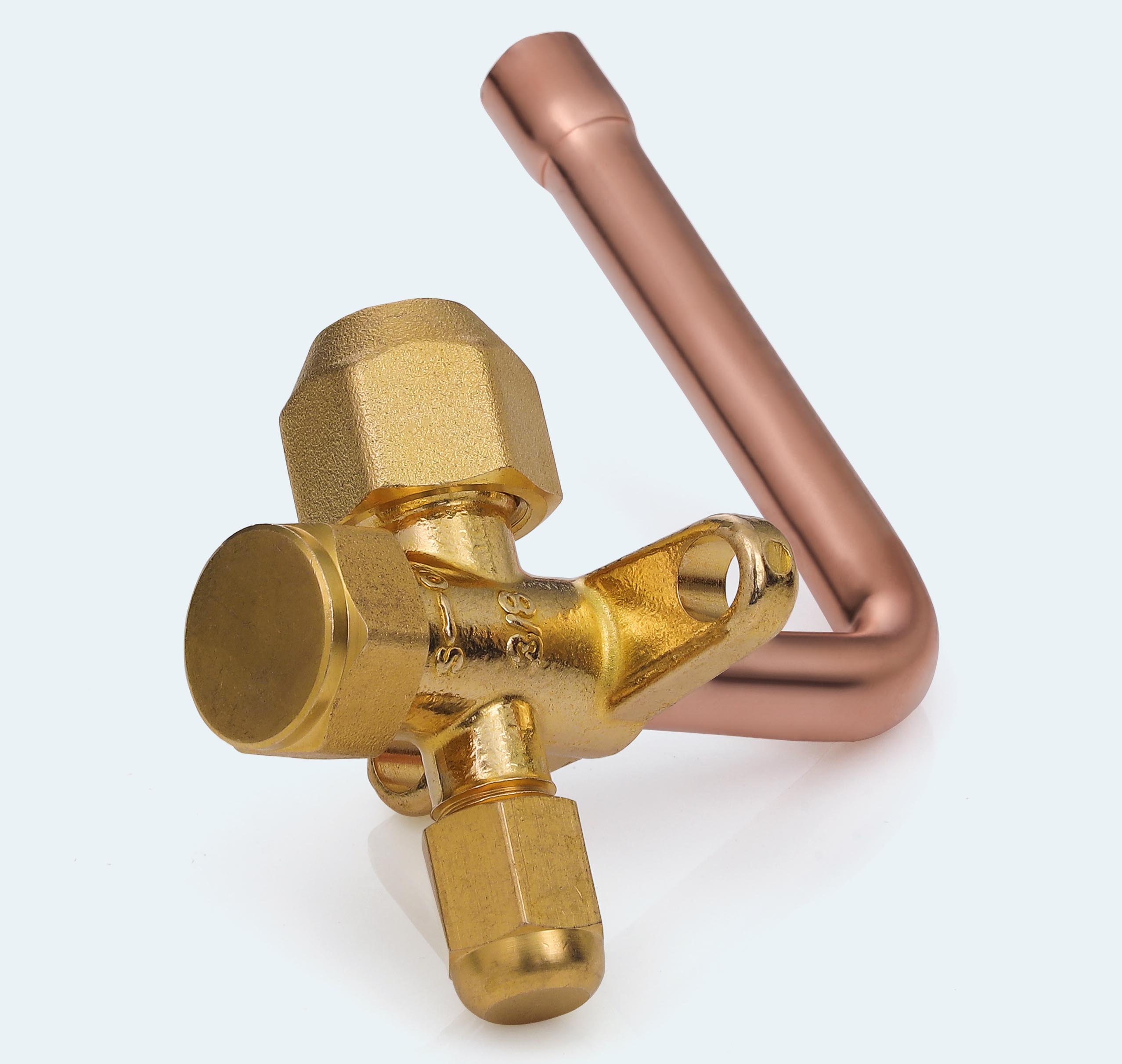

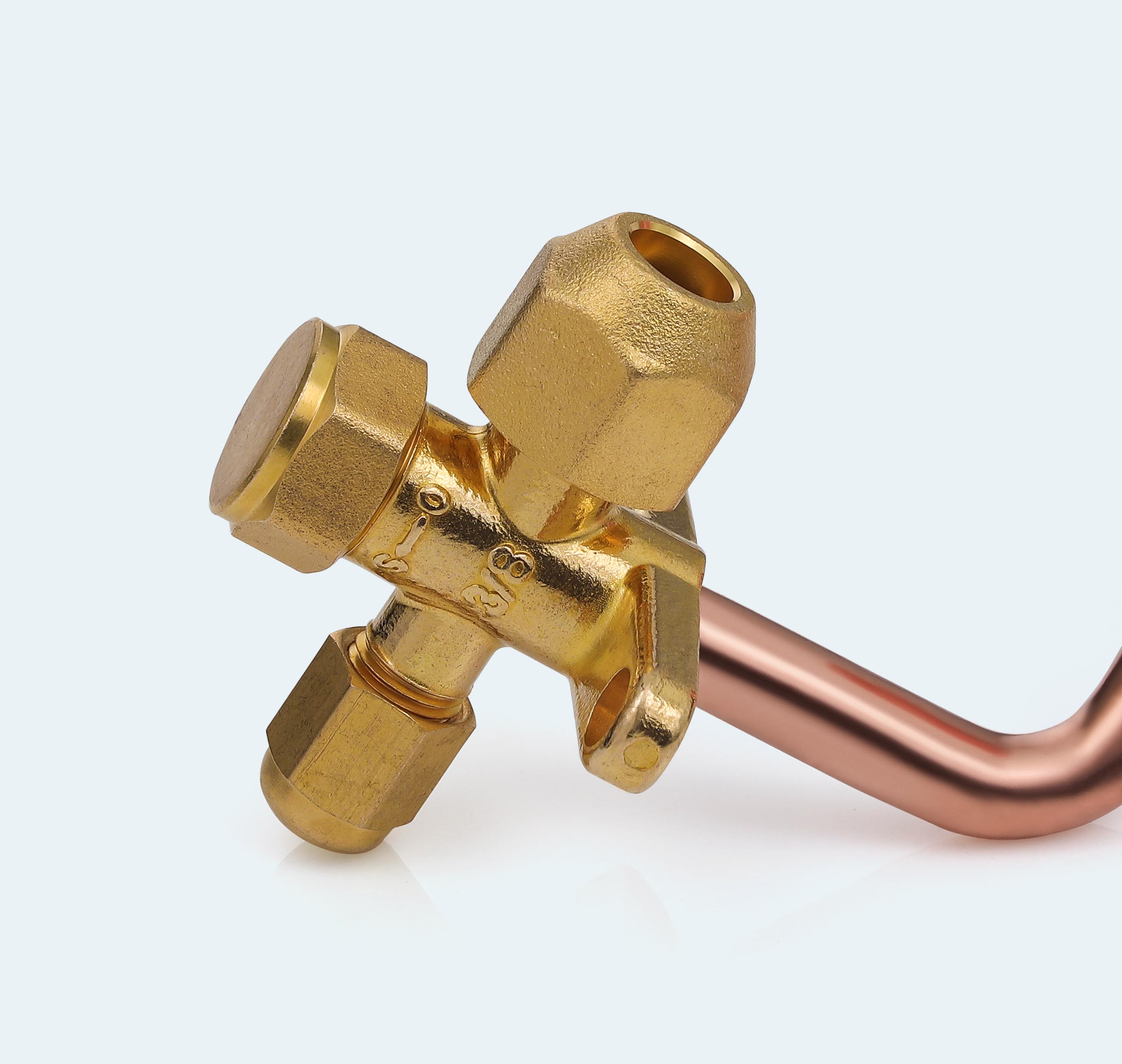

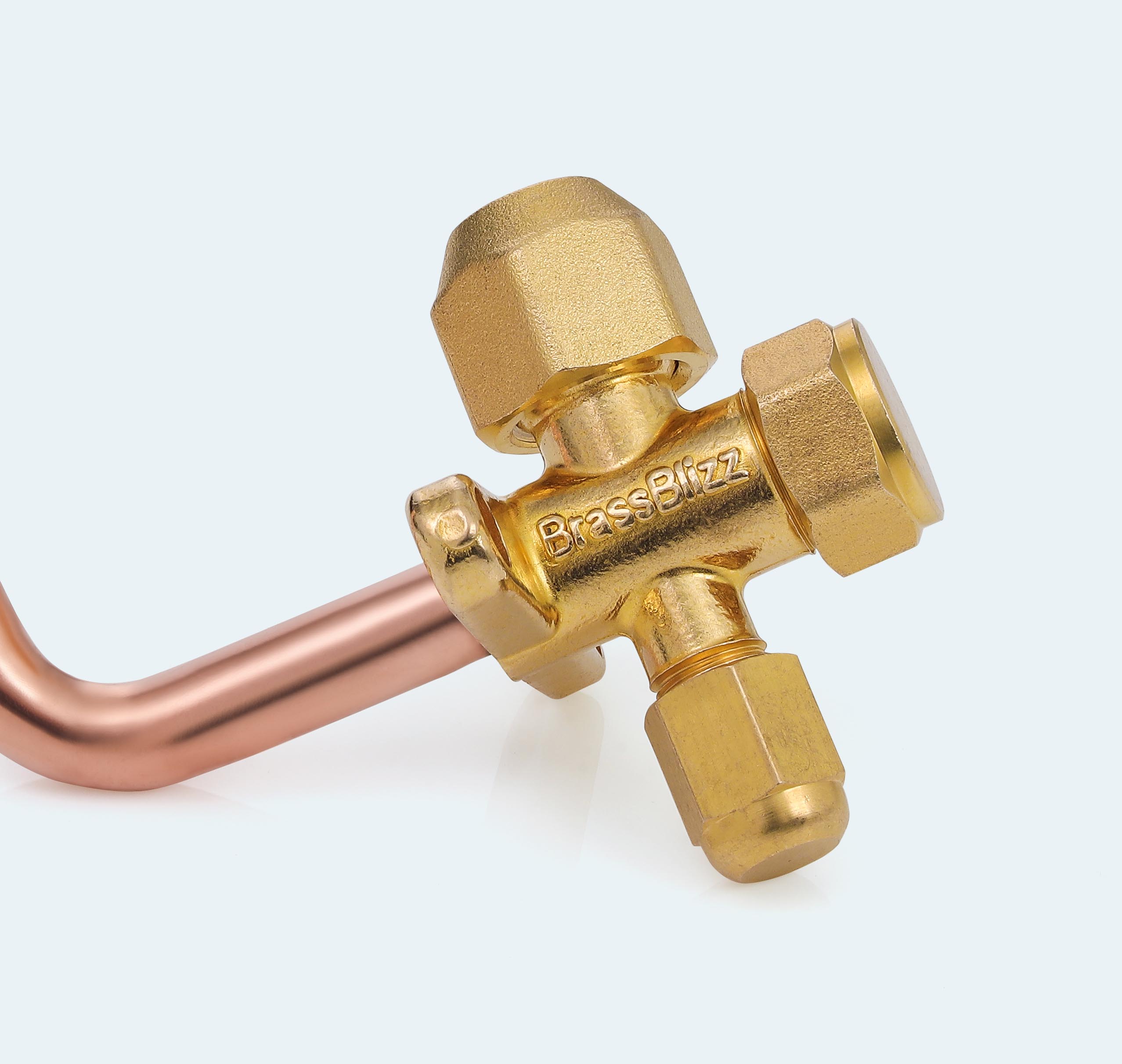

Our company’s 3/8” Band-Type Split Valve is engineered to bring versatility and strength to refrigerant line management. Built using a brass valve body and a 90° bent copper pipe, this valve offers a powerful combination of dual-thread connectivity and angled mounting — ideal for compact HVAC systems with precise pipe routing requirements.

Brass Body Engineering
Crafted from durable, high-grade brass, the valve body is pressure-resistant and corrosion-proof, providing long-term stability in demanding HVAC conditions.

Copper Consistency
The 90° pipe is made from 98% pure copper, using 23G gauge for consistent wall thickness and optimal flow. Its positioning at a 45° angle relative to the valve provides easy access and effective routing during installations.

Brazing Mastery
Our company utilizes advanced induction brazing to create a permanent joint between brass and copper. This ensures a leak-resistant, vibration-tolerant structure ready for field performance.

Threading Versatility
This valve features two thread sizes for dual connectivity:

• 7/16"-20 UNF for 1/4 charging line connections (SAE standard)

• 5/8"-18 UNF for flared copper pipe with nut assembly

Strength You Can Count On
Rated for working pressure up to 800 PSI, the valve is compatible with refrigerants like R22, R410A, and R32, making it ideal for residential and light-commercial systems.

Verified Quality
Weighing 146.00 grams ± 1.00 gram, each unit is tested for strength, sealing, and material accuracy before packaging.

Applications

• Split AC systems requiring angled pipe entry

• Medium-capacity HVAC installations using dual-threaded valve setups

• Compatible with R22, R410A, R32 refrigerant systems

Packaging
Each valve is carefully packed in our custom cardboard box to ensure safe delivery and secure storage.

Note: This product is designed for refrigerant gas systems only. Not suitable for potable water applications.
