5/8" Split Valve – Band Type

5/8" Split Valve – Band Type: High-Capacity Control with Angular Flexibility

Our company’s 5/8” Band-Type Split Valve is built for high-volume refrigerant systems, offering superior flow capacity, dual-thread adaptability, and a smart angular layout. This valve is designed for HVAC engineers who demand strength, precision, and ease during brazing and installation.

Engineered Brass Body
Constructed from solid brass, the valve body delivers high resistance against refrigerant corrosion, mechanical stress, and long-term operational fatigue — essential for large-capacity A/C units.

Pure Copper with Intelligent Mounting

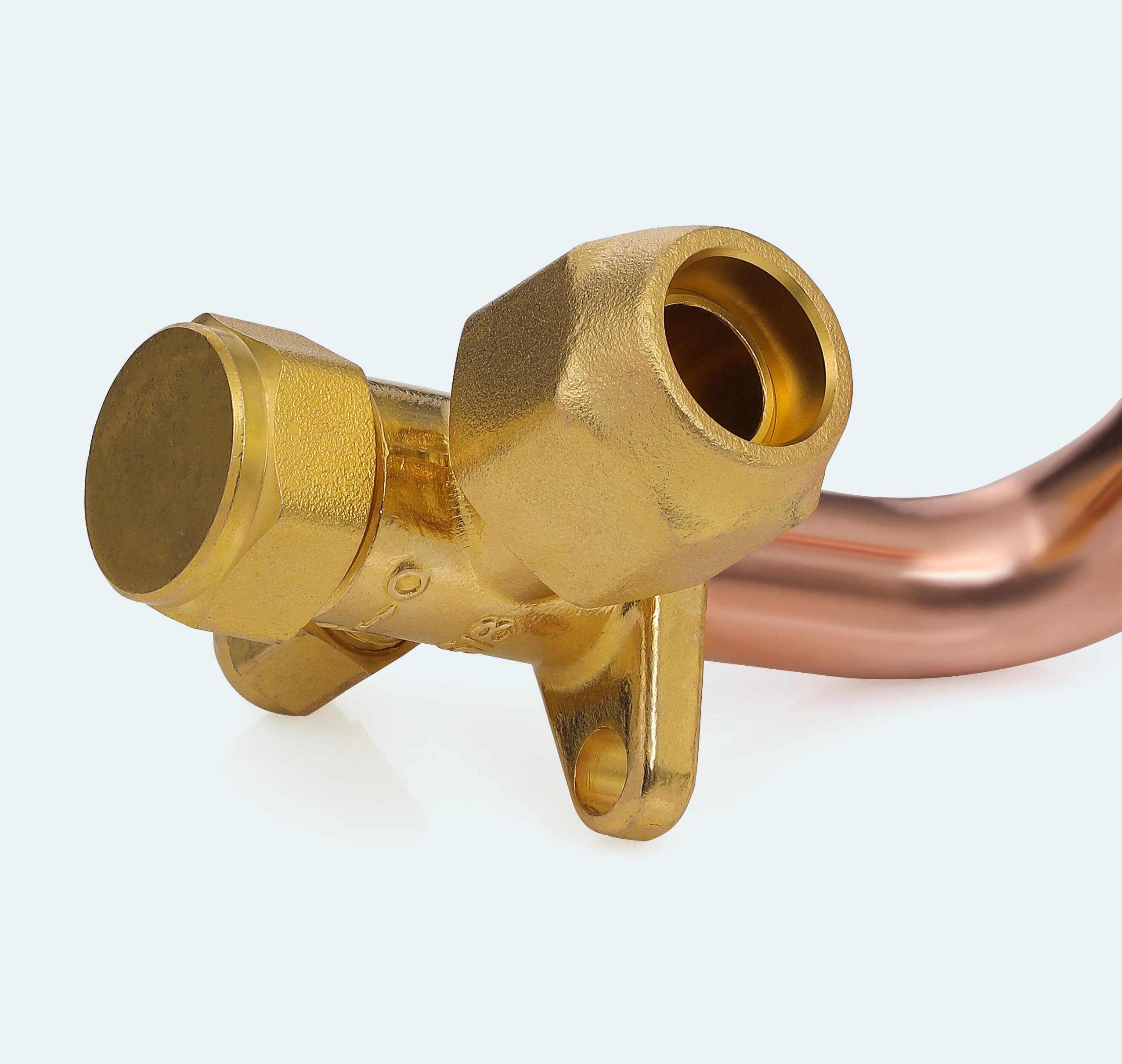

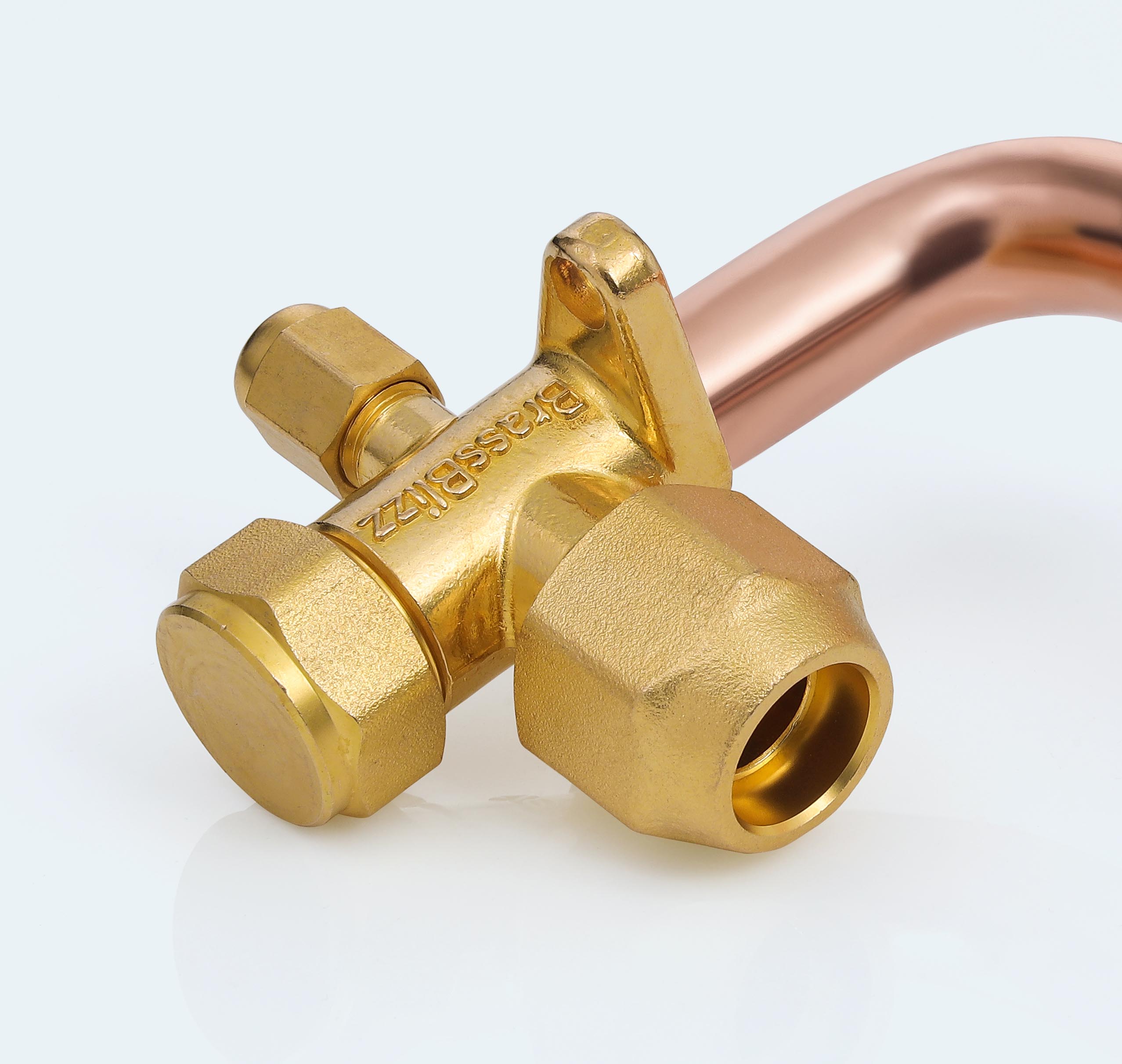

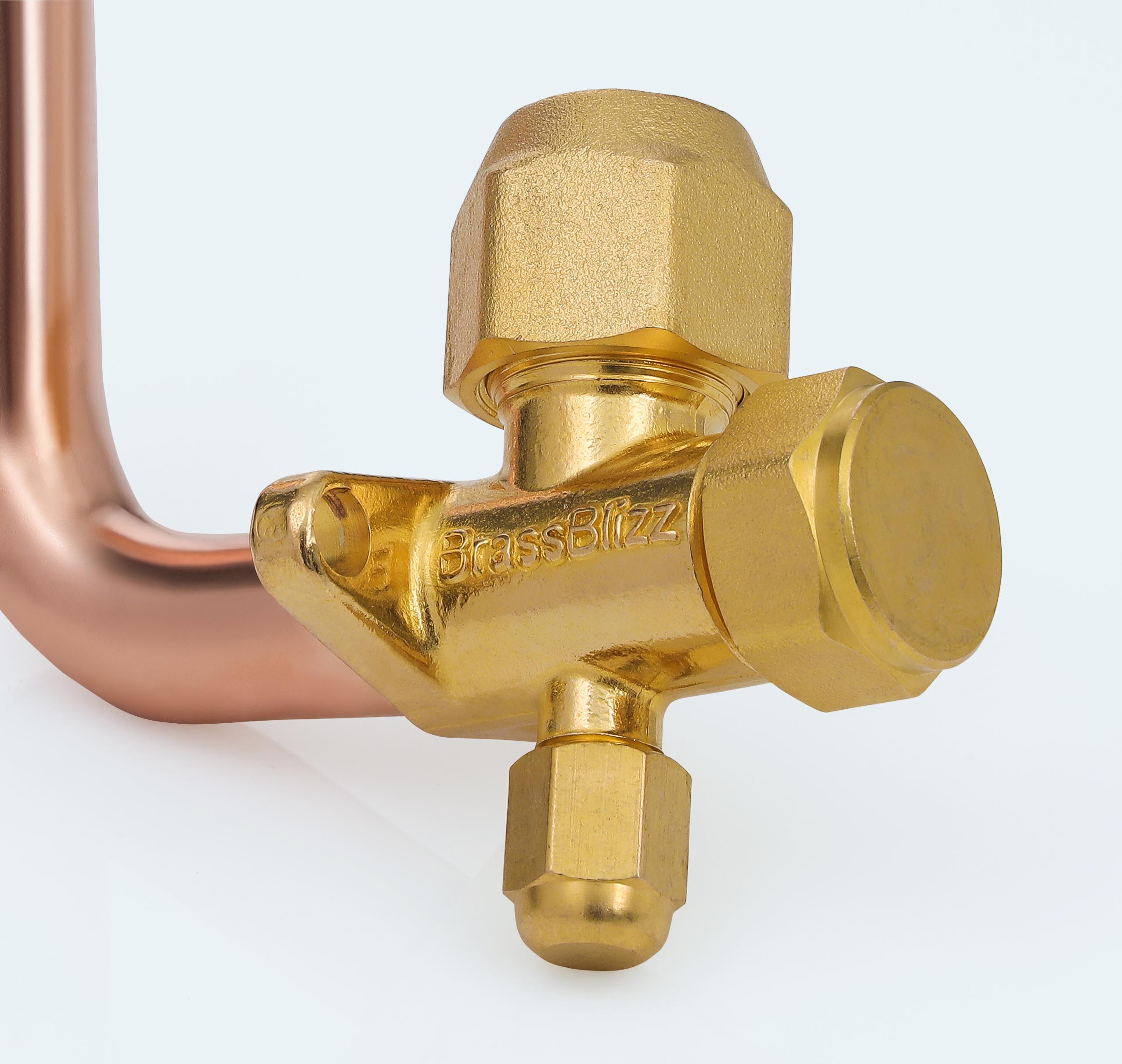

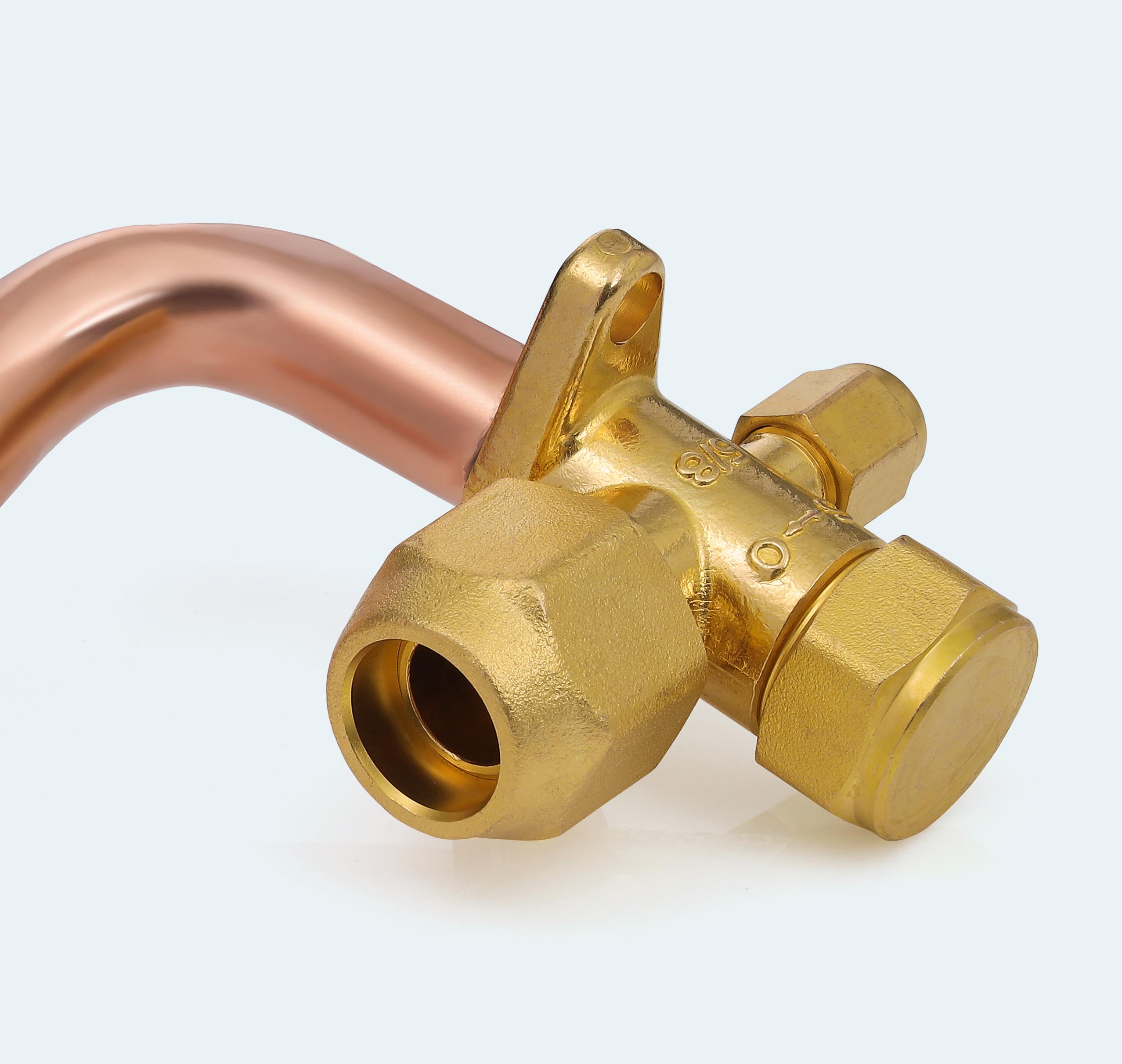

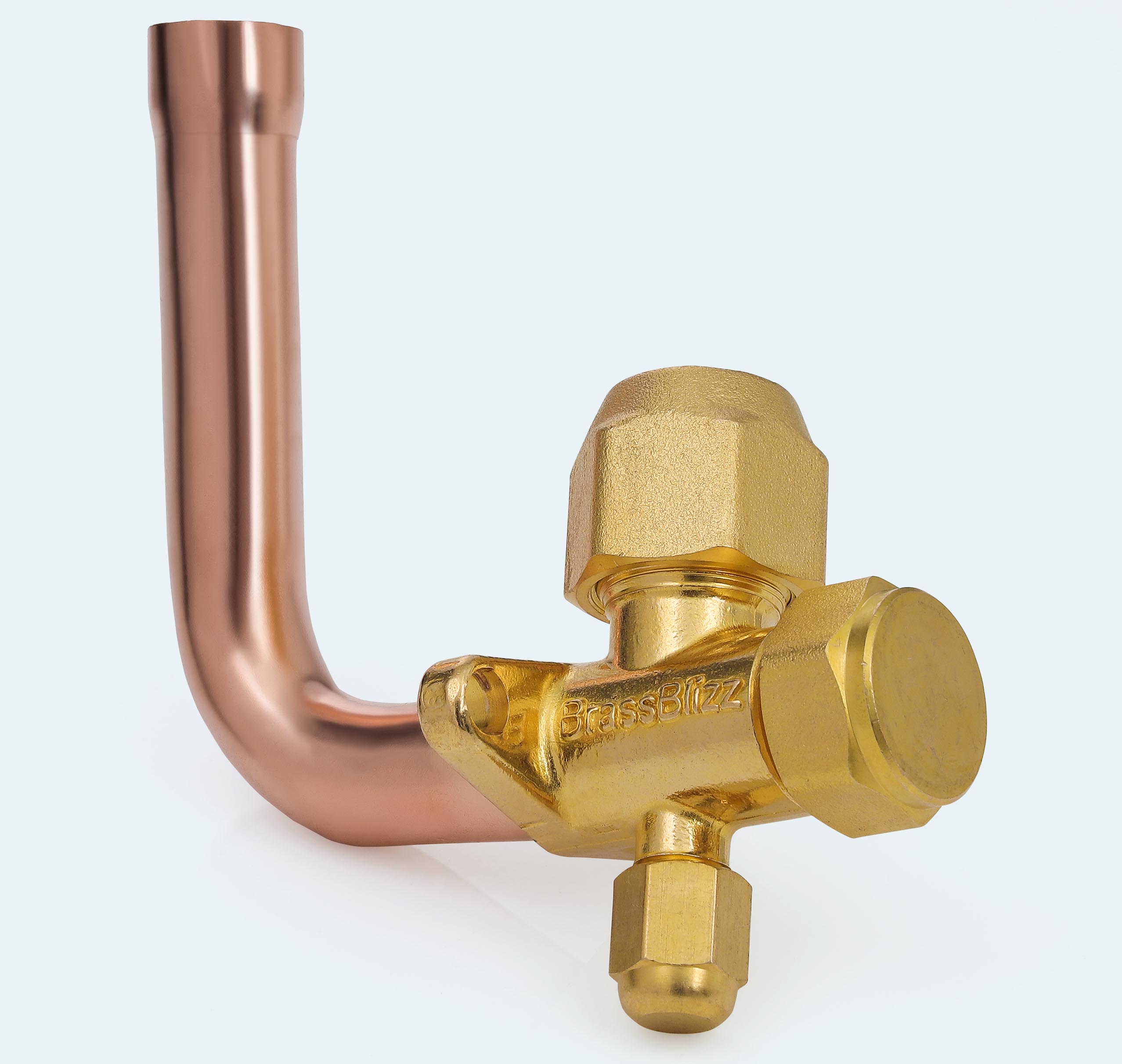

A 90° bent pipe made from 98% pure 23G gauge copper is fixed at a 45° angle to the valve, optimizing space and accessibility during installation. The pipe is brazing-ready for permanent A/C system integration.

Induction Brazing Excellence
Using our company’s signature induction brazing technology, each brass and copper joint is permanently fused, ensuring a high-strength, leak-proof structure that maintains integrity under heavy-duty HVAC use.

Dual Thread Configuration

• 7/16"-20 UNF (for 1/4 charging line connection)

• 7/8"-14 UNF (for flared copper pipe with nut)

Performance Built-In
Rated for up to 800 PSI and compatible with R22, R410A, and R32 refrigerants, this valve is built to handle the pressure and thermal demands of modern cooling systems.

Tested & Verified
Each valve is thoroughly inspected and weighs 270.00 grams ± 1.00 gram, assuring structural precision and quality finish.

Applications

• Split AC units with 5/8" refrigerant line

• Outdoor HVAC setups requiring angled copper entry

• Refrigerant systems using R22, R410A, or R32

Packaging
Individually packed in our custom cardboard box for protection during delivery and long-term storage.

Note: For HVAC refrigerant use only. Not recommended for water or unrelated fluid systems.
