1/2" Split Valve – Straight Type

1/2" Split Valve – Straight Type: Built Straight for High-Capacity Precision

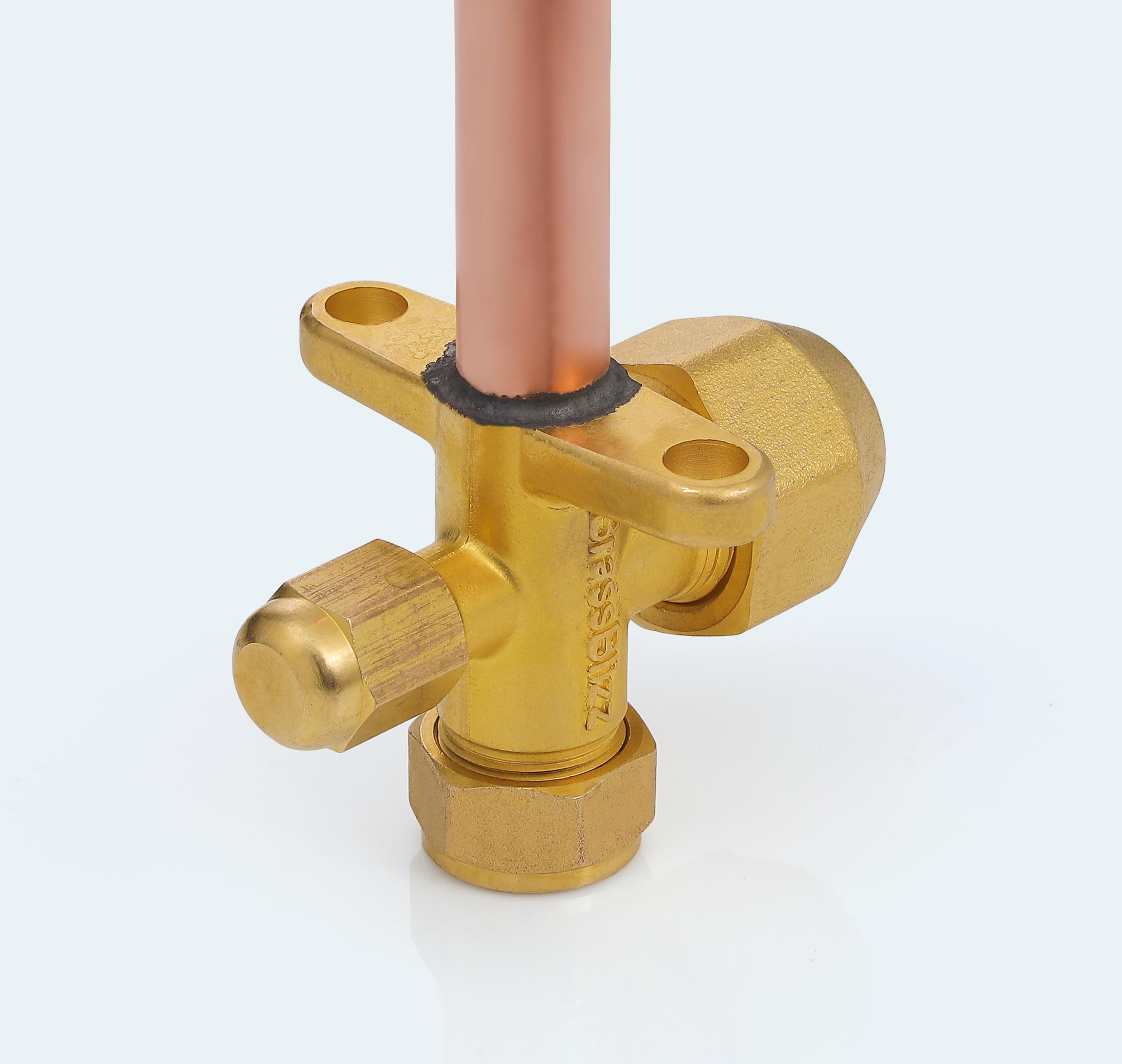

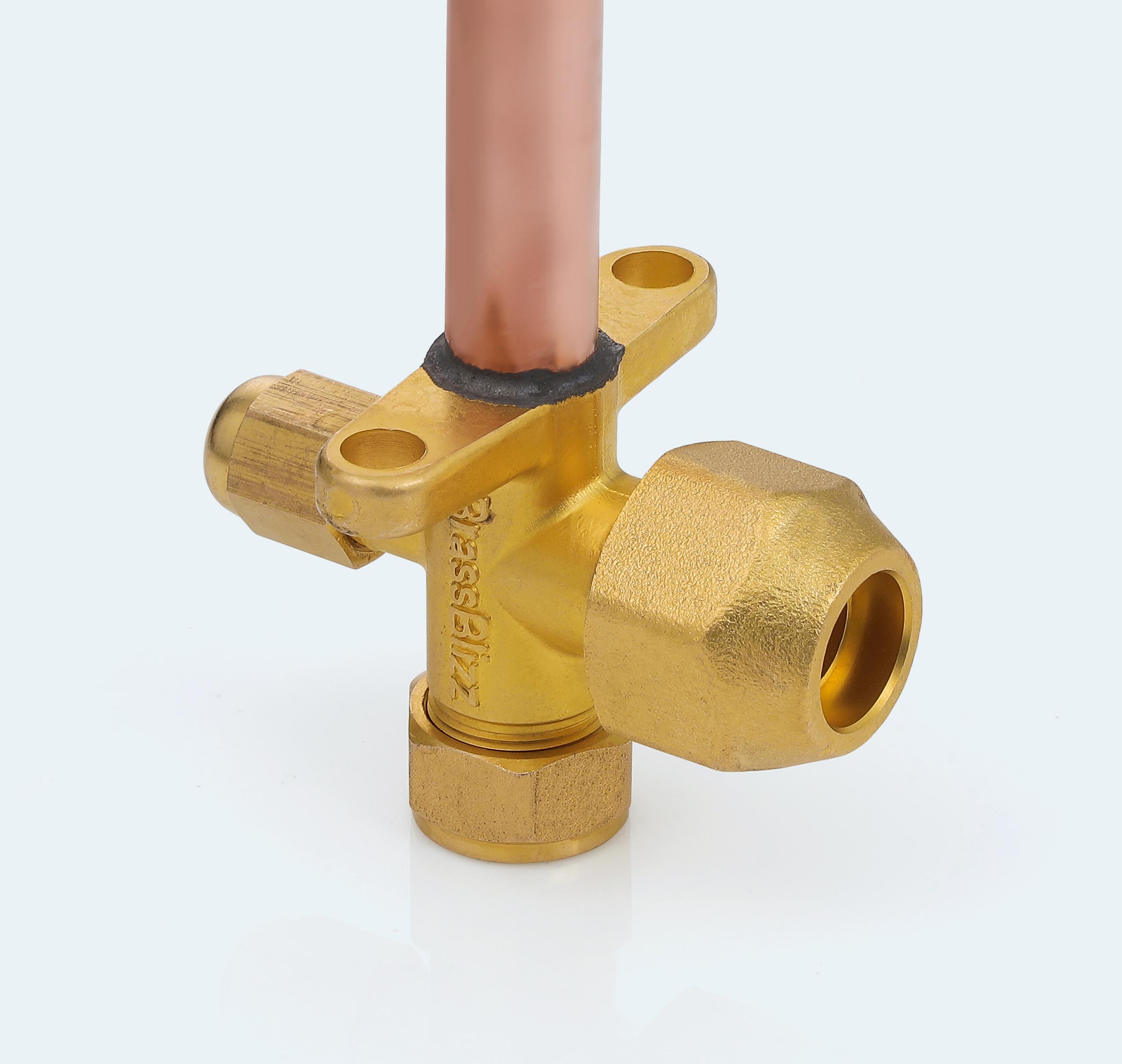

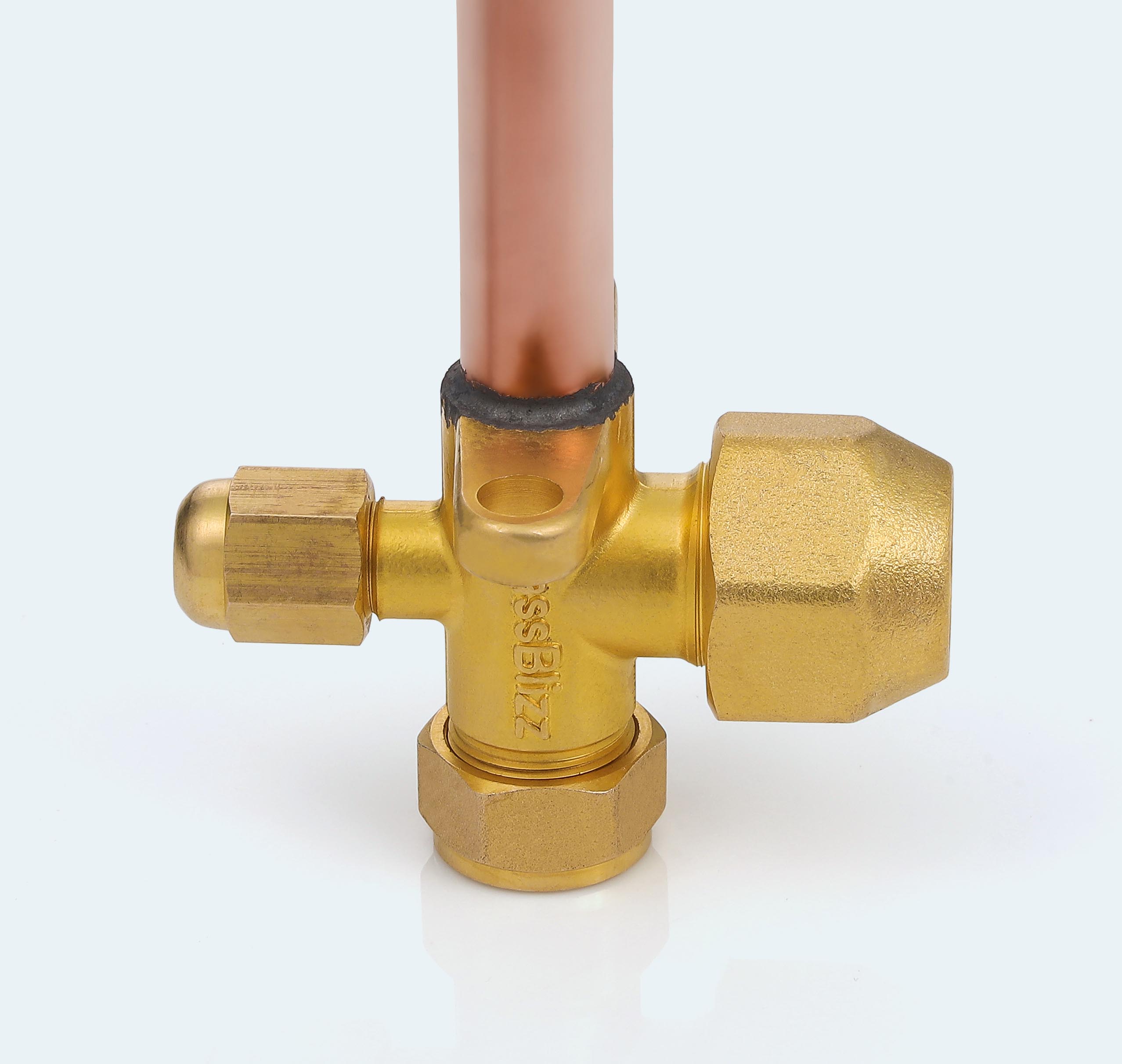

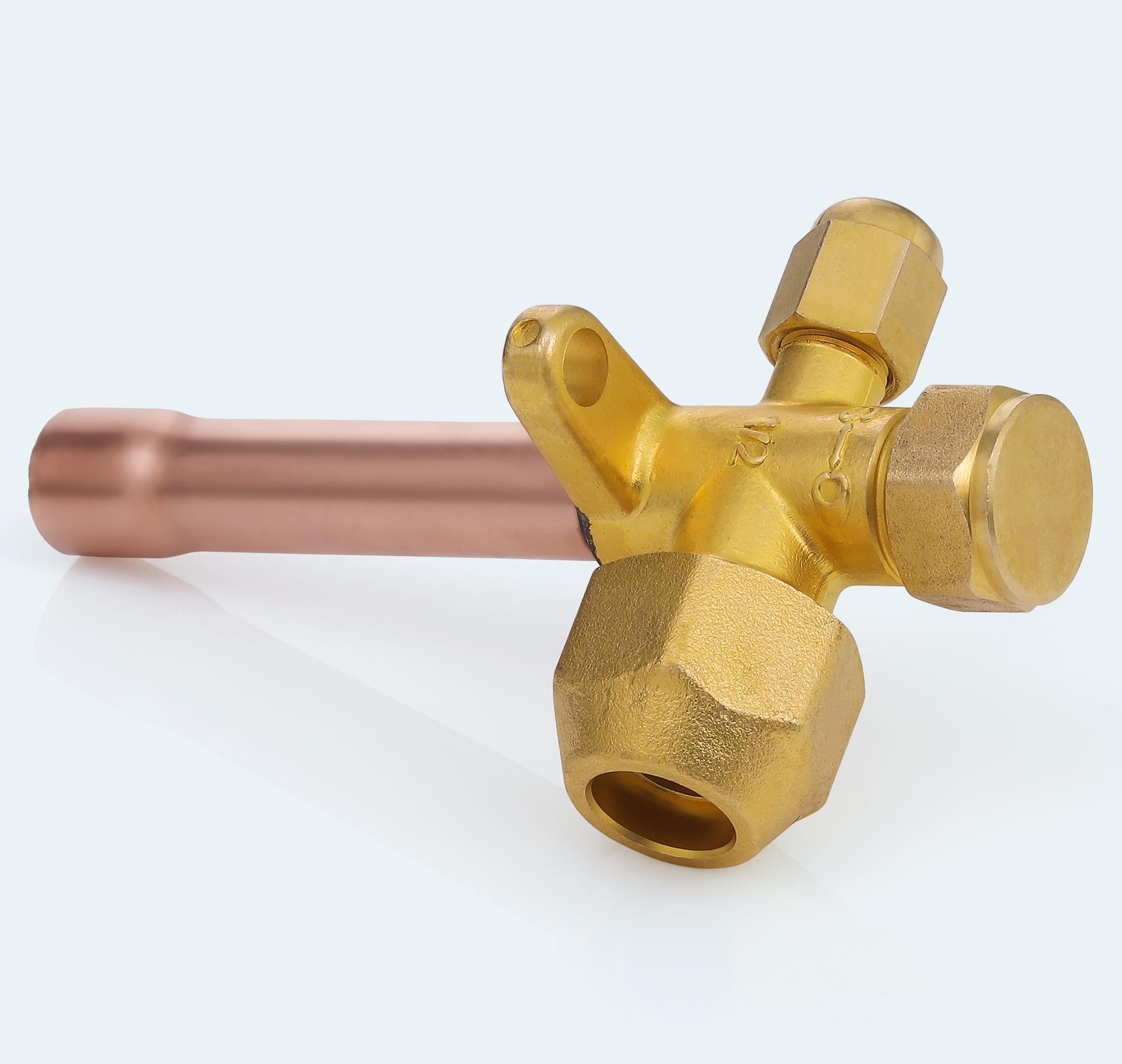

When alignment and performance matter most, our 1/2” Straight-Type Split Valve provides a compact and effective solution. Made with a strong brass body and a vertically aligned copper pipe, this valve supports high-capacity refrigerant flow in straight-line installations with confidence.

Engineered Brass Core
Made from solid brass, the valve body delivers robust resistance to pressure, corrosion, and wear — ideal for continuous exposure in HVAC environments.

Straight Pipe with 90° Bend
Constructed from 23G gauge 98% pure copper, the pipe is factory bent at 90° and vertically mounted to the valve — providing streamlined refrigerant routing and brazing readiness.

Induction Brazing Bond
Our company uses precision induction brazing to create a permanent bond between copper and brass, resulting in a sealed, high-integrity assembly designed for years of reliable use.

Thread Size & Compatibility

• 7/16"-20 UNF for 1/4 charging port connection

• 3/4"-16 UNF for flared copper pipe with nut

Performance & Compatibility
Tested for 800 PSI, the valve supports common refrigerants including R22, R410A, and R32 — suitable for modern HVAC systems across India and global markets.

Weight & Inspection
With a verified weight of 167.00 grams ± 1.00 gram, each valve passes through multiple quality checkpoints before packaging.

Applications

• Straight-line installation in split AC units

• Outdoor HVAC systems with fixed vertical routing

• Dual-thread connections for R22, R410A, and R32 refrigerants

Packaging
Each unit is delivered in our company’s protective custom cardboard box — ready for warehouse, shipment, or direct installation.

Note: Recommended for HVAC refrigerant lines only. Not suitable for water or non-compatible fluid use.
