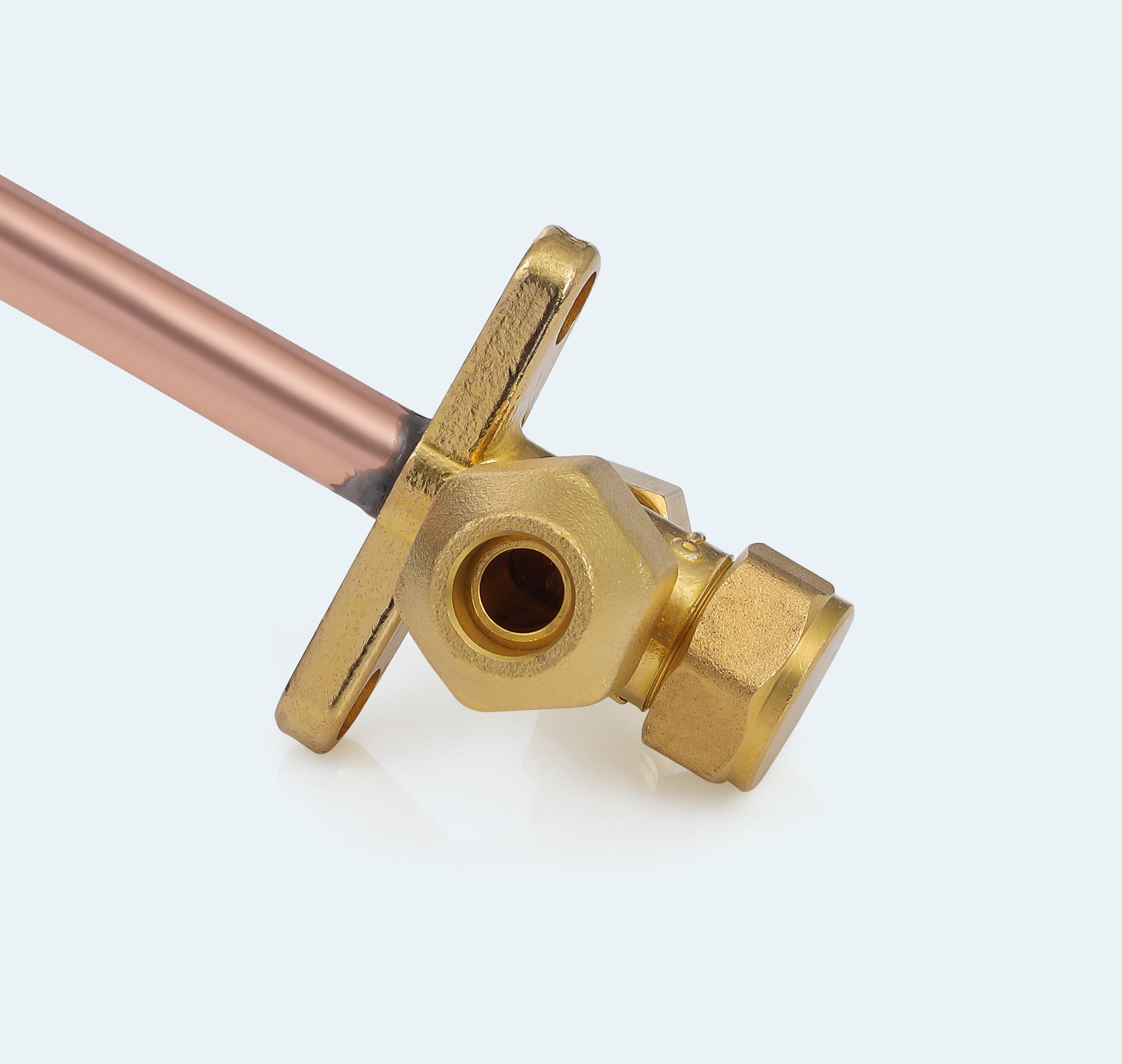

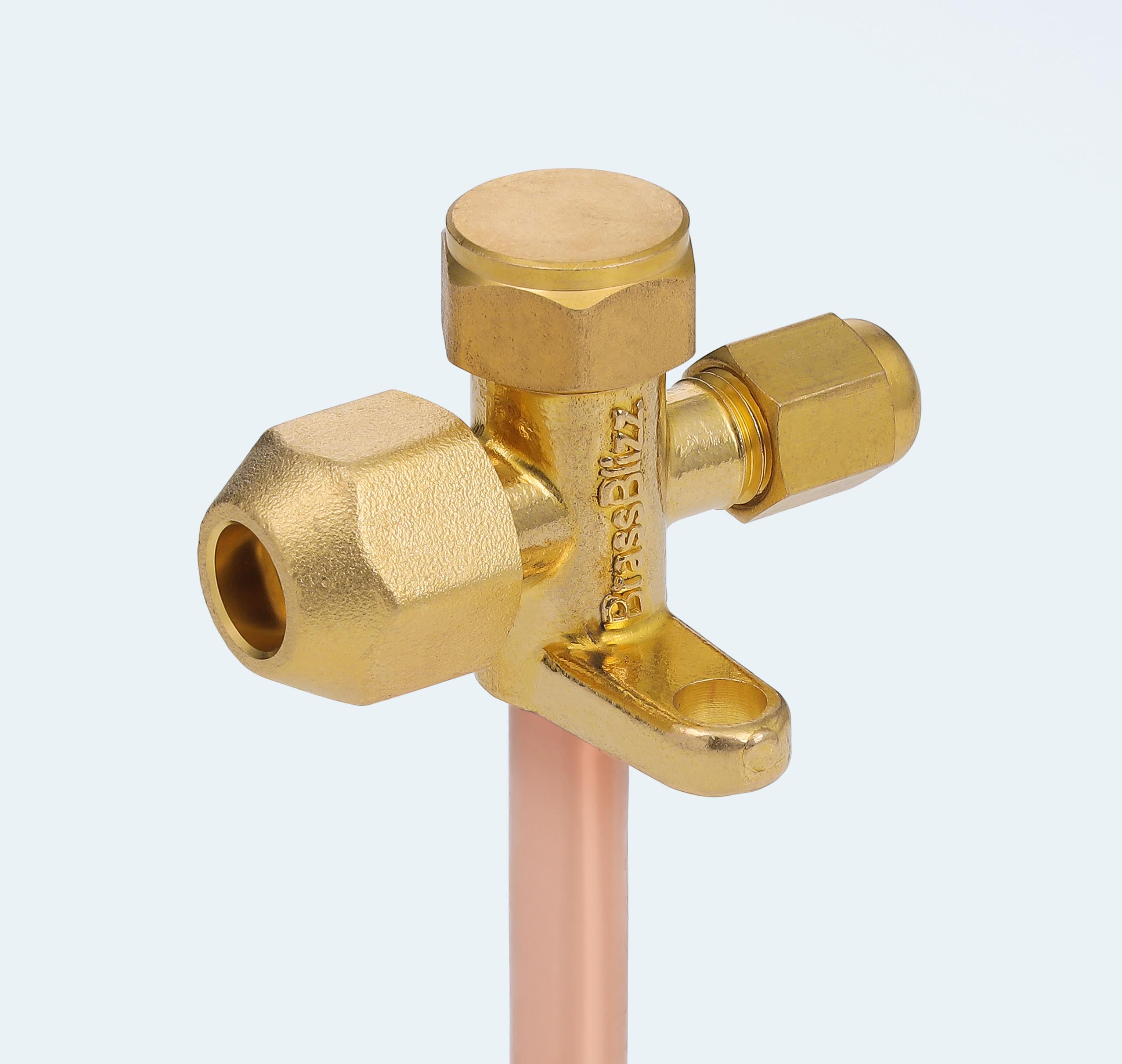

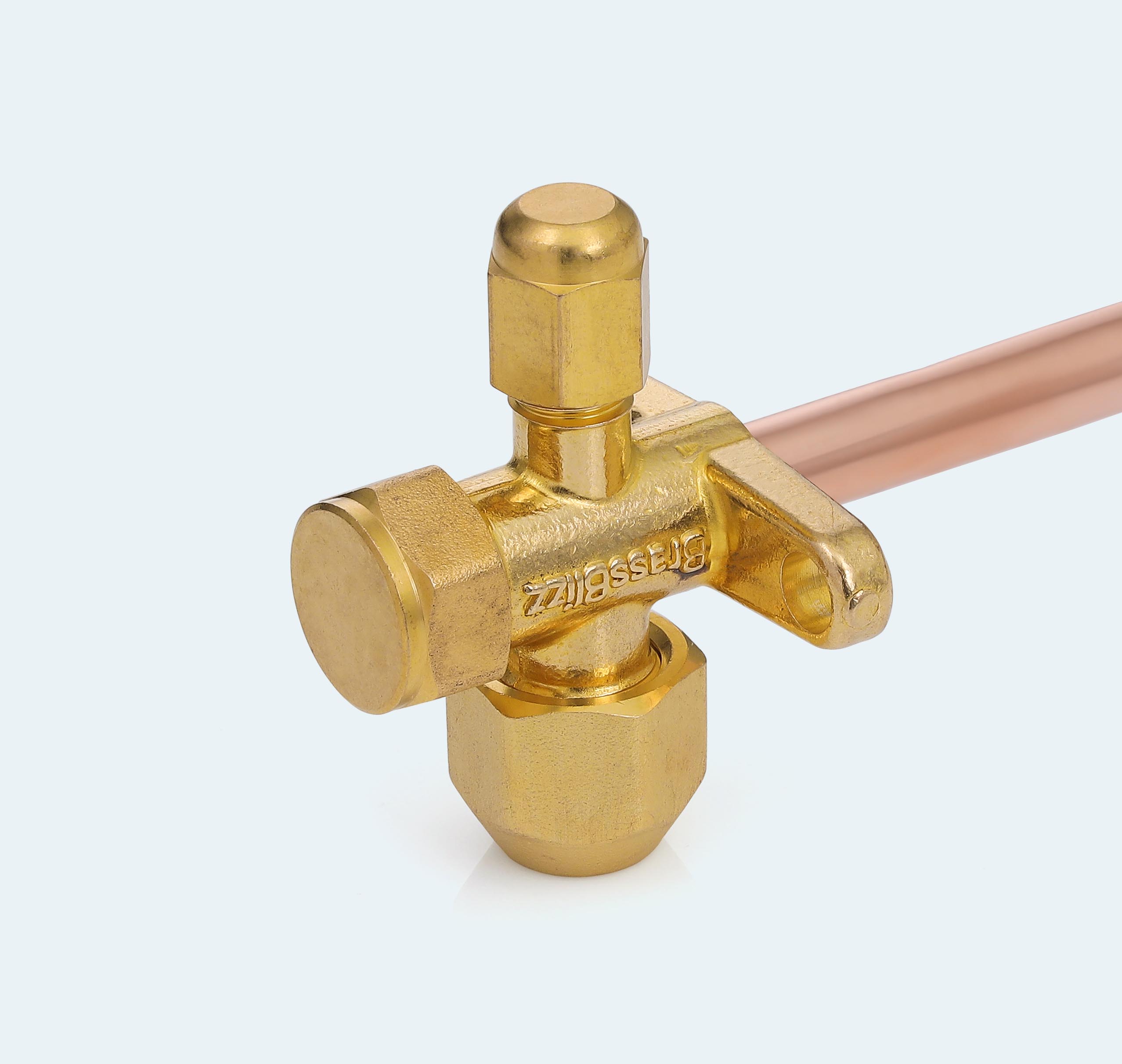

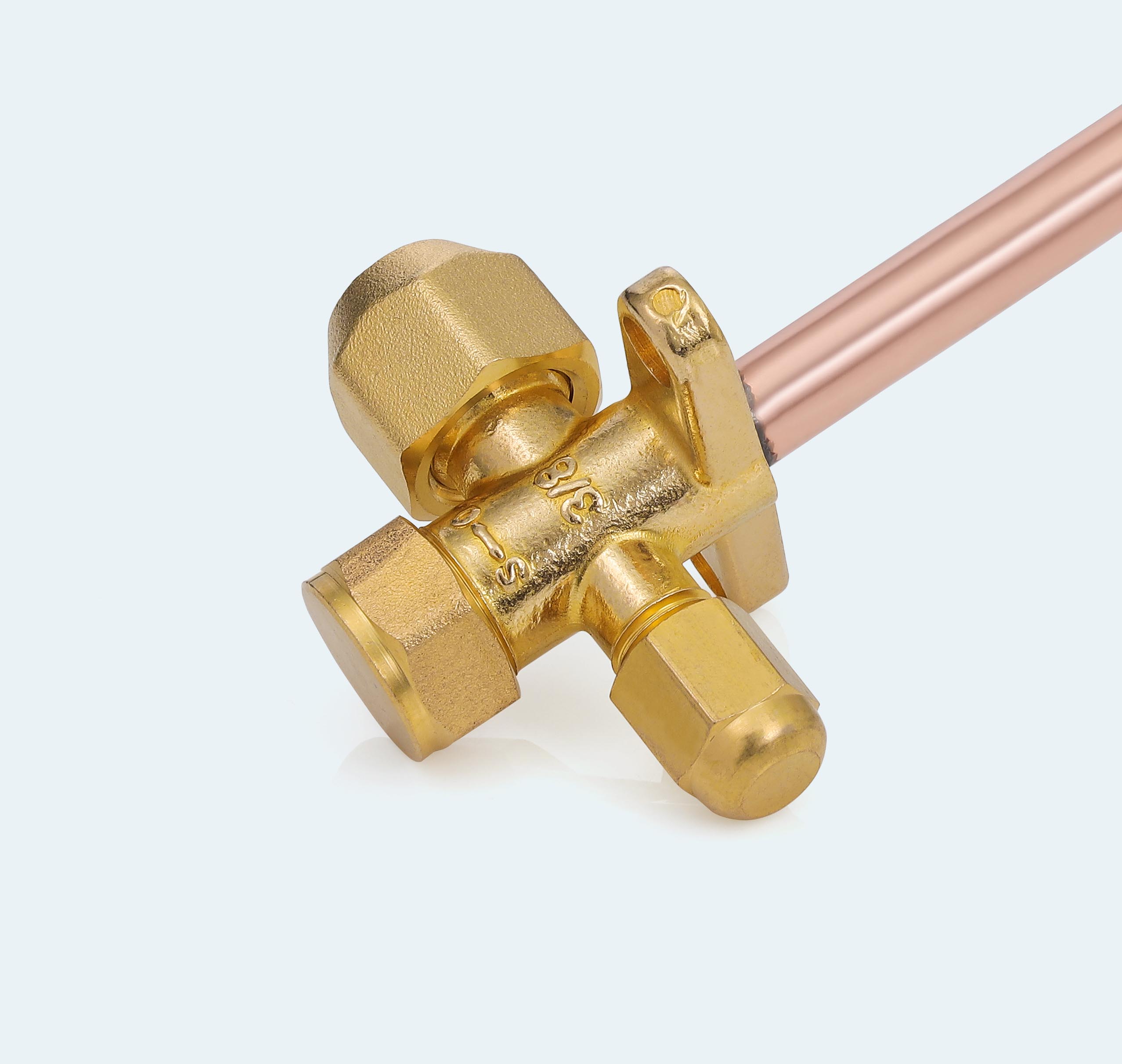

3/8" Split Valve – Straight Type

3/8" Split Valve – Straight Type: Precision Meets Linearity

This 3/8” Straight-Type Split Valve is designed by our company for streamlined installations that demand vertical alignment and dual-thread functionality. With a straight copper connection and high-pressure rating, this valve delivers solid, leak-proof performance in a compact, service-friendly design.

Brass Strength at the Core
Machined from premium brass, the valve offers mechanical resilience and chemical stability against refrigerant gases — ensuring performance even in tough operating conditions.

Straight Copper Pipe Efficiency
Fitted with a straight pipe bent at 90°, made from 23G gauge pure copper, this layout is ideal for installations that require a linear, upright connection to the valve.

Induction Brazing Technology
The copper and brass components are fused using our company’s proprietary induction brazing technique, ensuring a strong, airtight connection designed to last.

Dual Thread Integration

• 7/16"-20 UNF for 1/4 charging hose attachment

• 5/8"-18 UNF for copper pipe + nut assembly

Engineered for Pressure
Rated to perform up to 800 PSI, this valve is compatible with R22, R410A, and R32 refrigerants.

Certified Build Quality
Weighing 137.00 grams ± 1.00 gram, every valve is quality-checked and certified before packaging.

Applications

• Split air conditioning systems with vertical copper layouts

• HVAC installations requiring dual-thread access

• Refrigerant systems using R22, R410A, or R32

Packaging
Delivered in our company’s protective cardboard box, ideal for safe delivery and warehouse stocking.

Note: For refrigerant applications only. Do not use with potable water systems.
