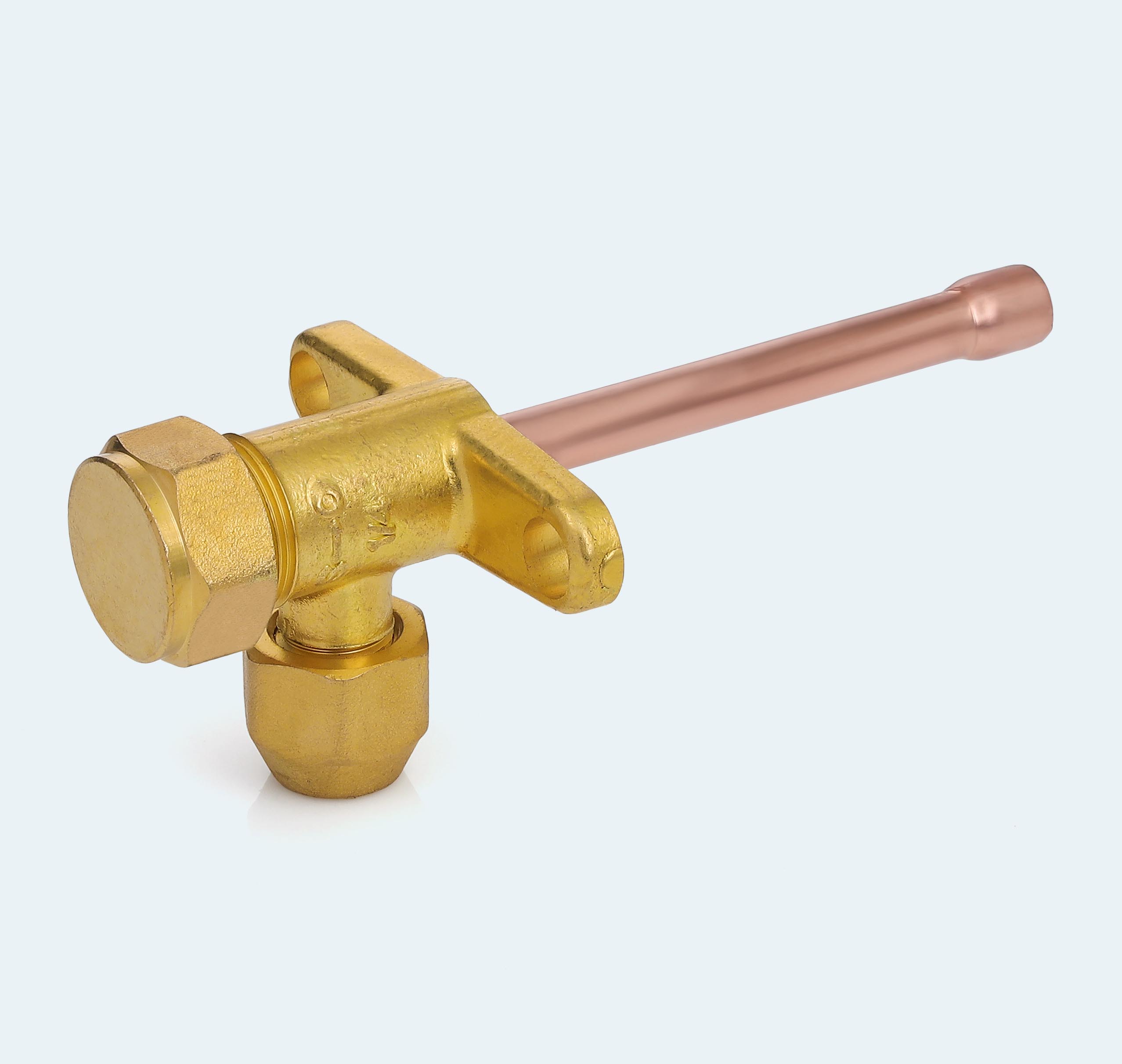

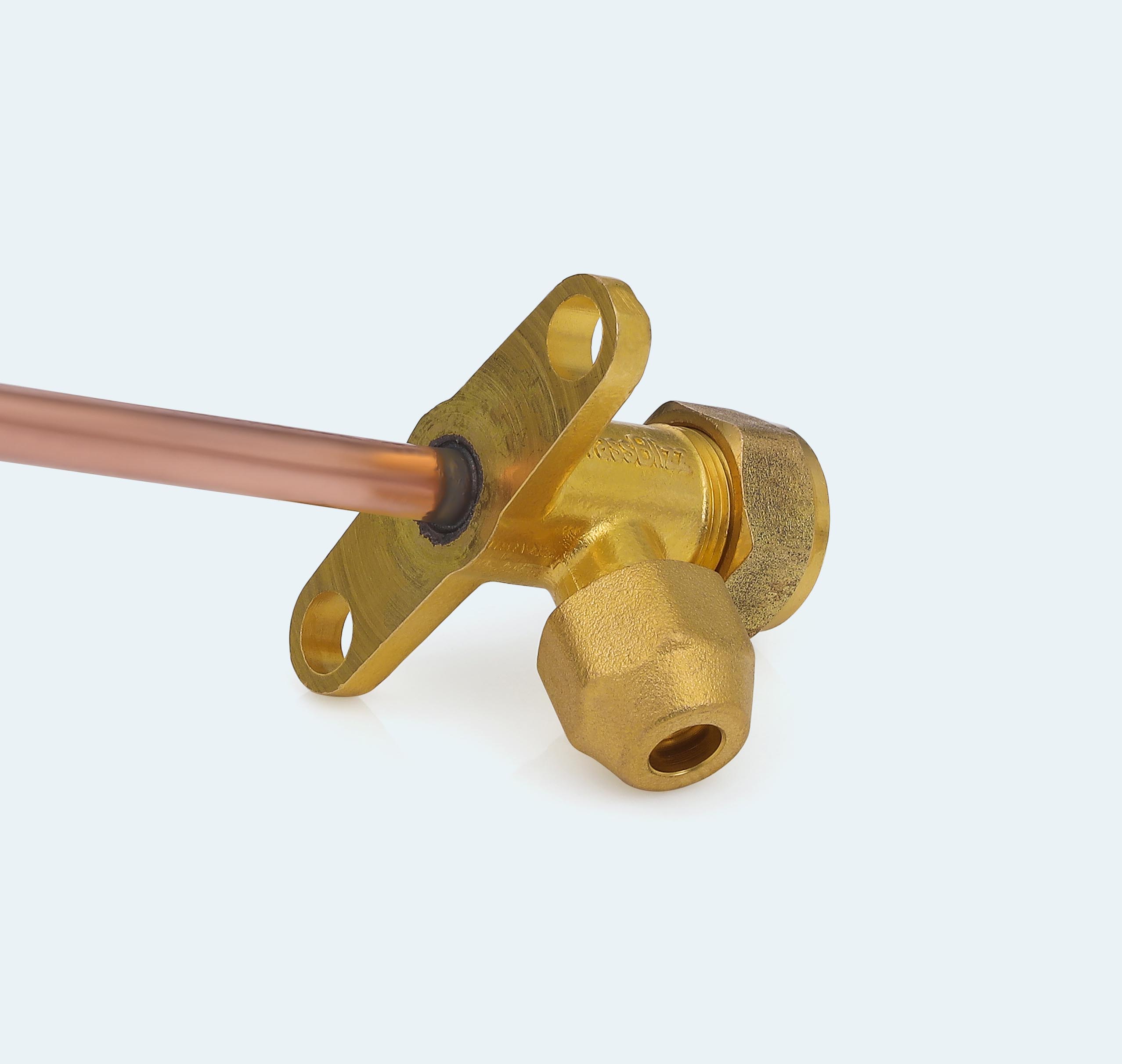

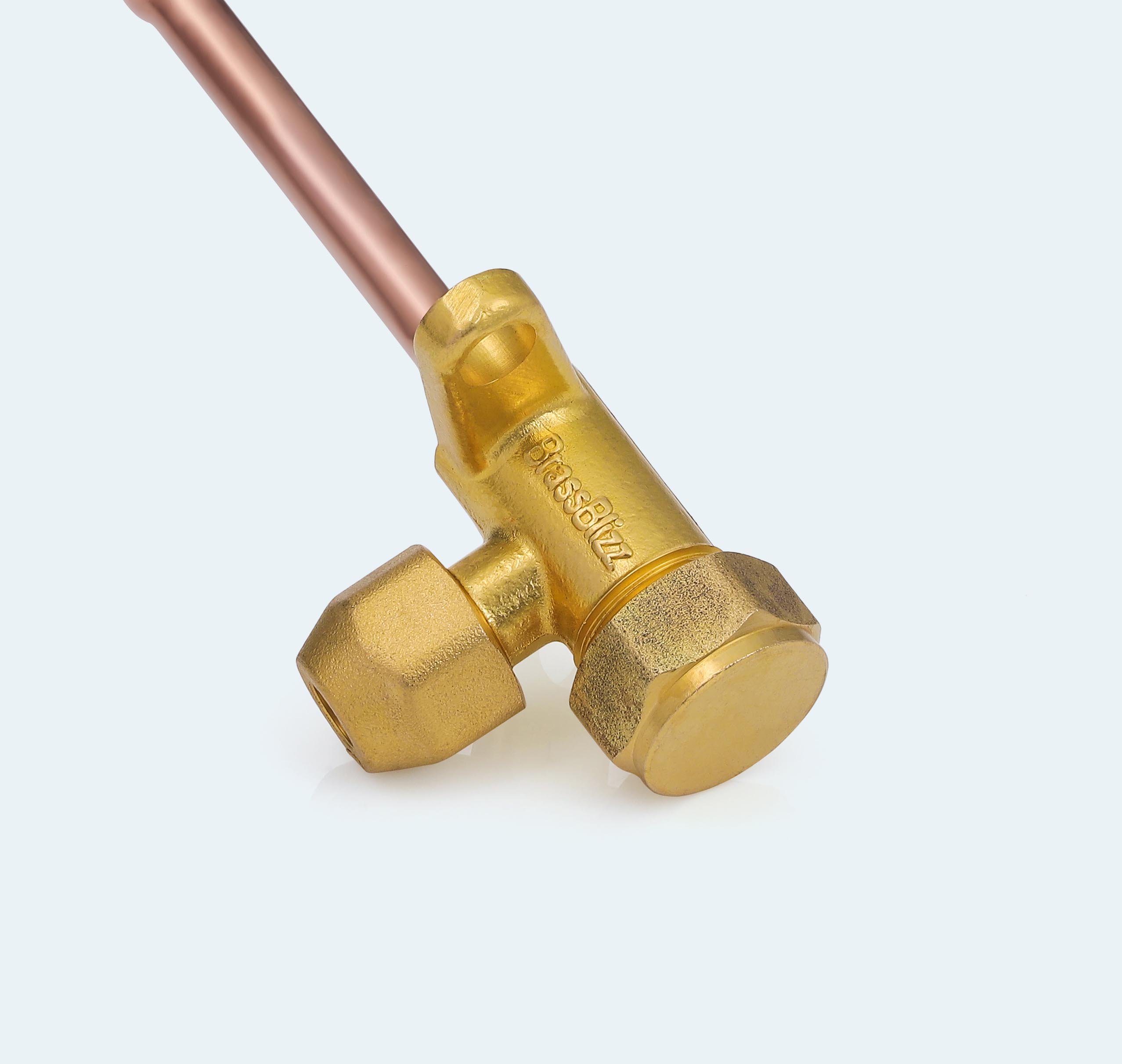

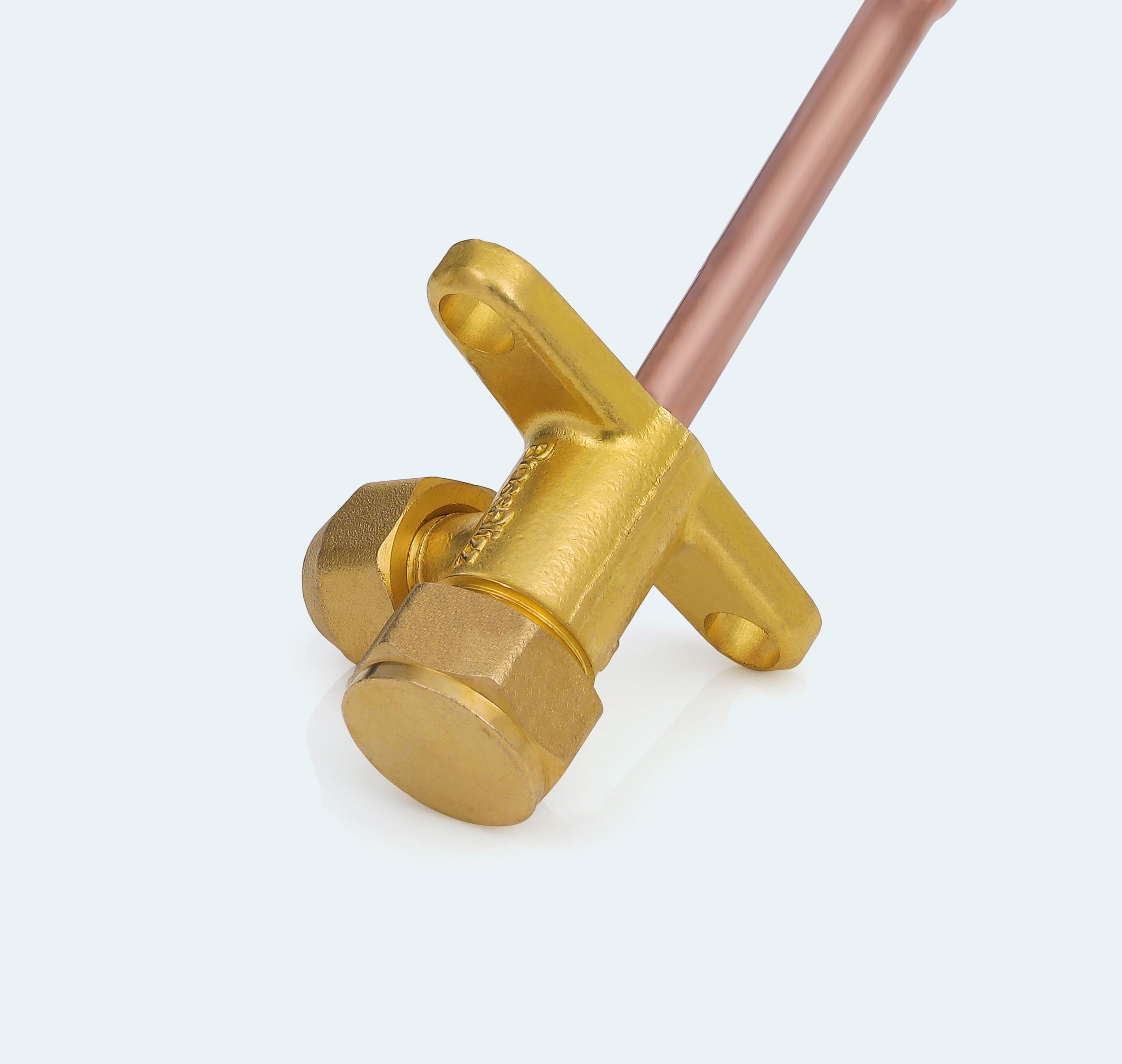

1/4" Split Valve – Straight Type

1/4" Split Valve – Straight Type: Streamlined Design, Proven Performance

The 1/4” Straight-Type Split Valve is engineered for vertical-line installations where straight copper alignment is required. Developed by our company, this valve blends material integrity and performance reliability to meet the demands of modern HVAC systems.

Built from Solid Brass
Machined from high-grade brass, the valve body is built to resist environmental stress, corrosion, and mechanical load during routine or long-term use.

Pure Copper, Perfectly Aligned
The straight copper pipe is made from 98% pure 23G gauge copper, bent at 90° while the valve enters vertically — ideal for systems where linear refrigerant flow is preferred.

Precision Brazing
A secure connection between the copper and brass is achieved using our company’s advanced induction brazing technique, creating a leak-resistant and high-durability joint.

Thread Size & Compatibility
Fitted with a 7/16"-20 UNF thread, this valve is fully compatible with standard HVAC tools and refrigerant service lines, ensuring universal field usability.

Rated for Performance
With a pressure handling capacity of up to 800 PSI, it supports R22, R410A, and R32 refrigerants in both residential and light commercial systems.

Strict Quality Assurance
Each unit is verified for accurate weight (93.00 grams ± 1.00 gram) and sealing reliability prior to packaging — reflecting our company’s no-compromise approach to quality.

Applications

• Residential split ACs with vertical copper line layouts

• Low-capacity HVAC systems using 1/4" connections

• Use with R22, R410A, R32 refrigerants

Packaging
Each valve is boxed individually using protective custom packaging for safe delivery and storage.

Note: This valve is engineered for HVAC refrigerant applications only and is not intended for use with potable water.
