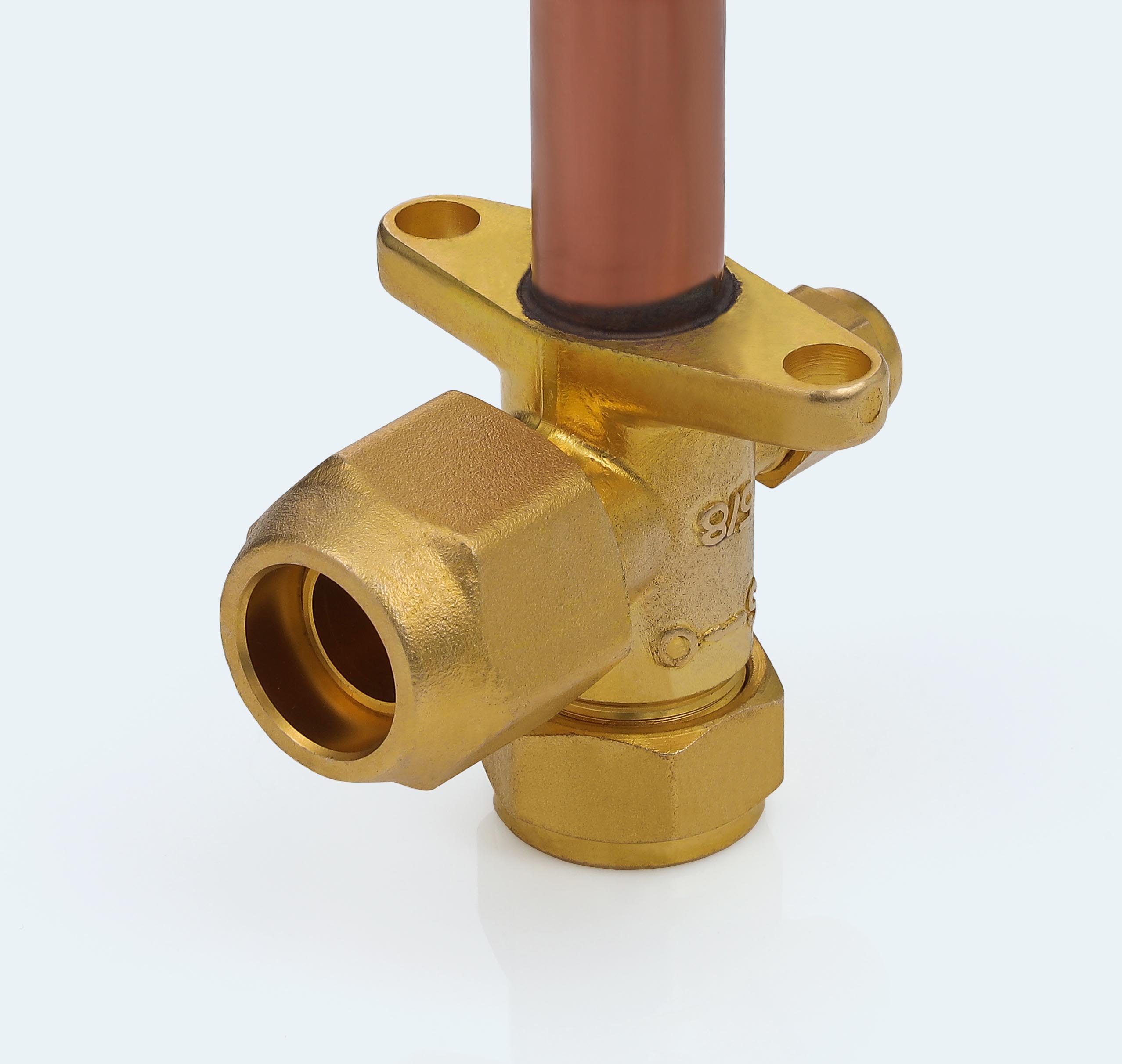

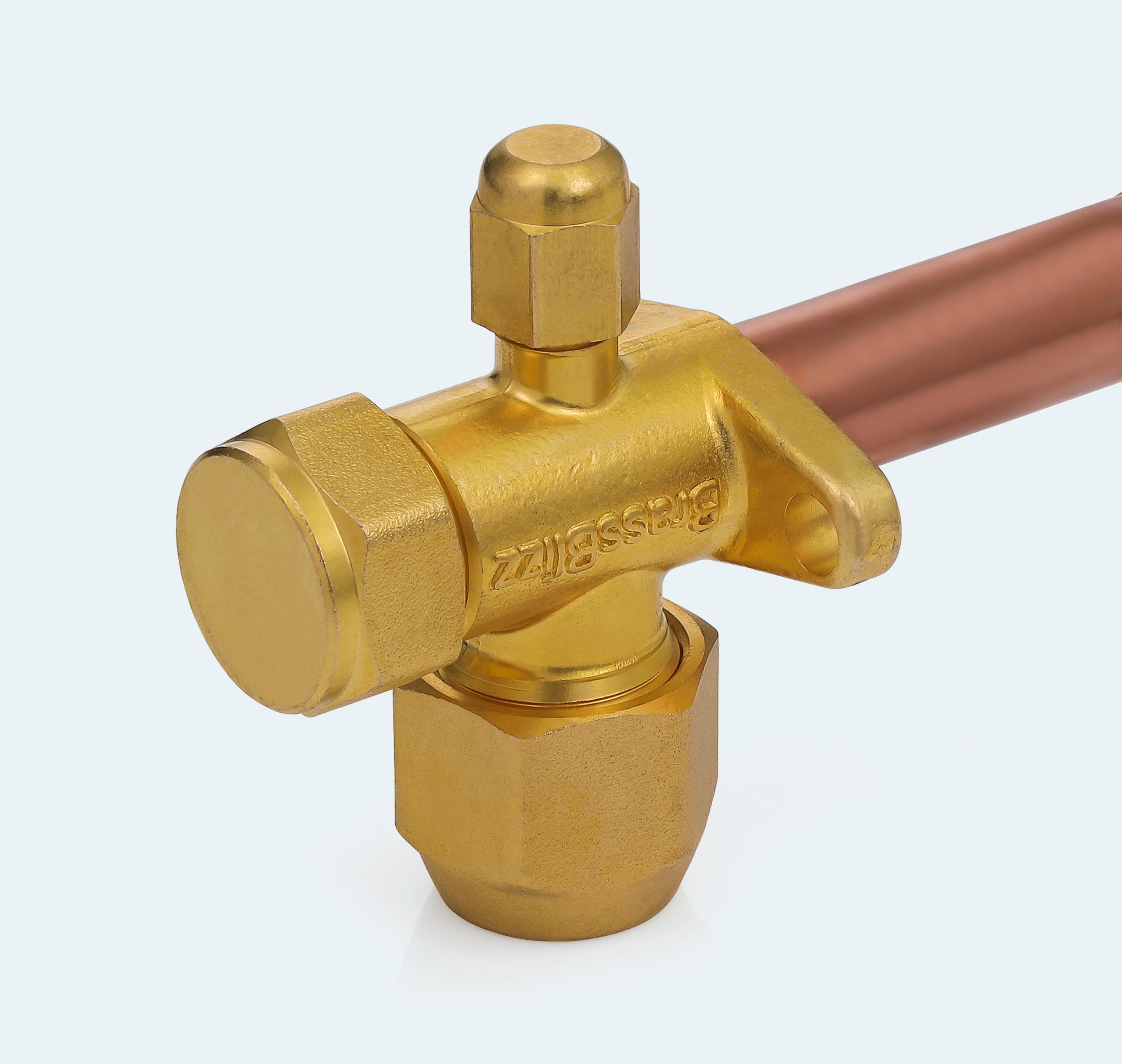

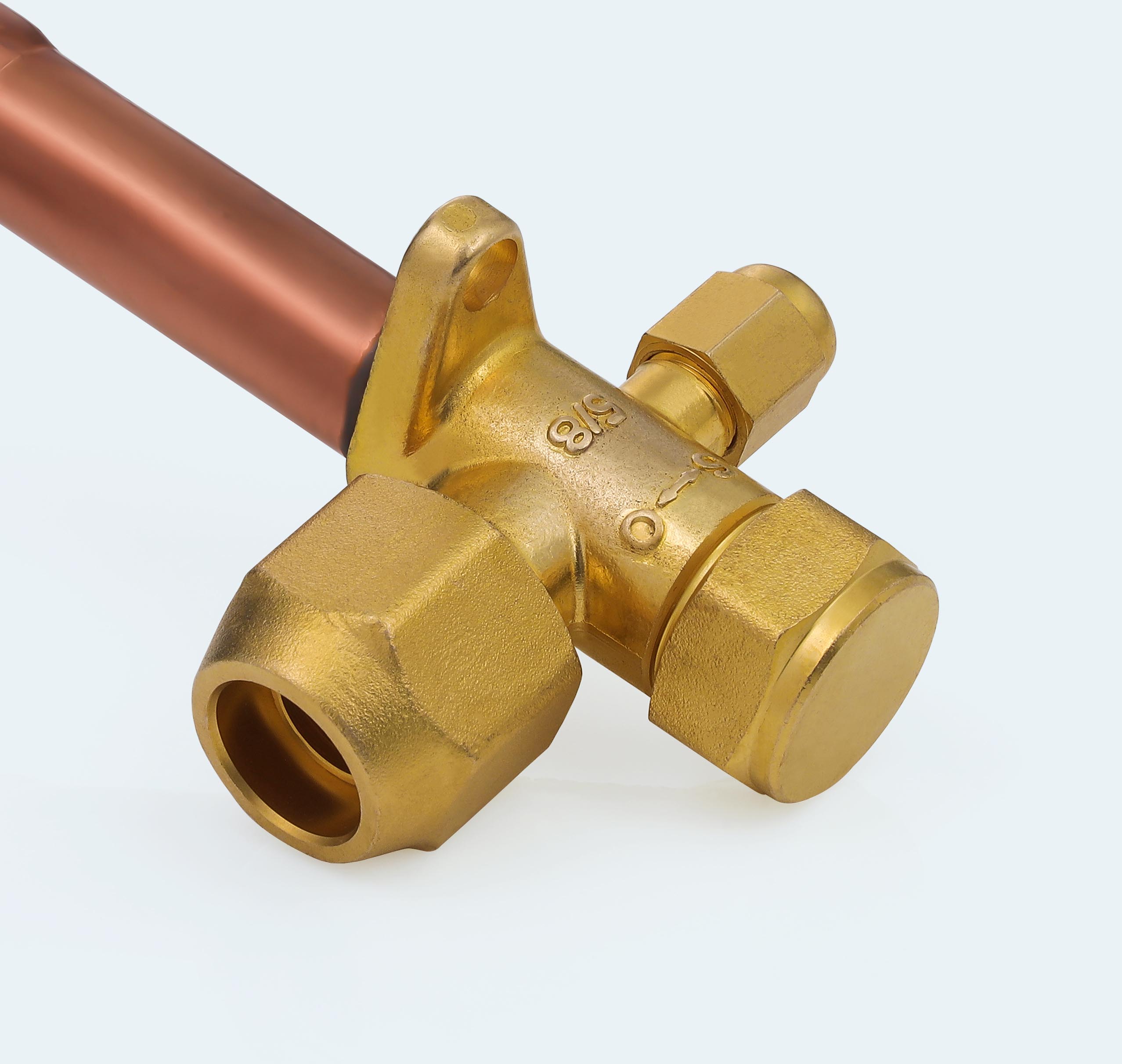

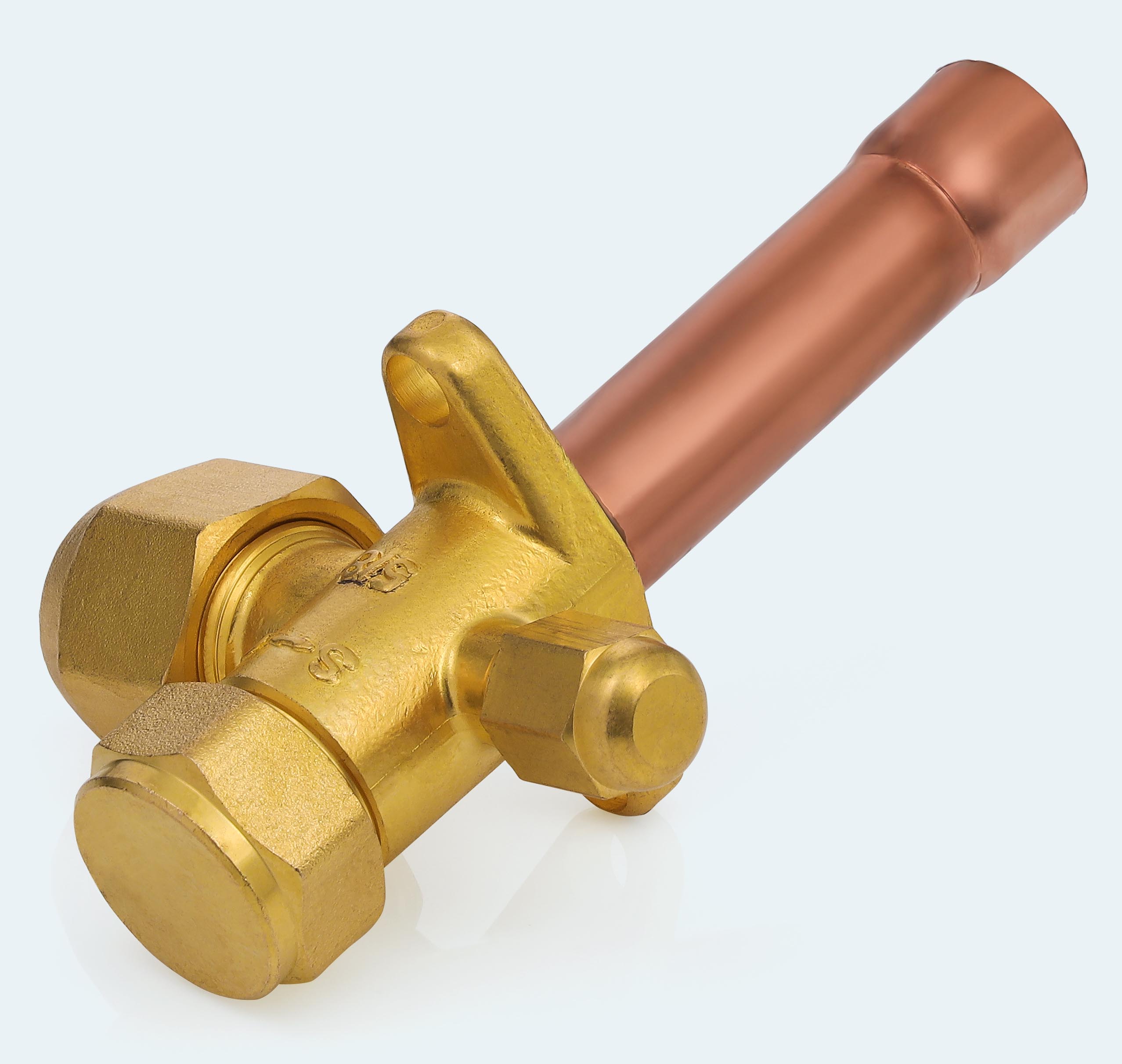

5/8" Split Valve – Straight Type

5/8" Split Valve – Straight Type: Powerfully Straight for Peak Performance

The 5/8” Straight-Type Split Valve is tailored for large-capacity HVAC systems that require vertical copper pipe alignment. Designed for maximum flow, durability, and compatibility, this valve simplifies refrigerant line management in even the most demanding conditions.

Brass Construction, Built to Last
Milled from premium brass, the valve body provides excellent durability under refrigerant pressure, resists corrosion, and supports consistent sealing during extended use.

Vertical Copper Flow Path
Crafted from 23G pure copper, the 90° bent pipe is aligned vertically with the valve for linear installations. Ideal for systems that require space-efficient, straight-line connections.

Strong Brazed Union
Brass and copper components are securely fused using our company’s induction brazing process, delivering an unbreakable seal and eliminating common points of leakage.

Threaded for Versatility

• 7/16"-20 UNF for charging line side

• 7/8"-14 UNF for flared copper pipe with nut

Heavy-Duty Rated
With a working pressure of up to 800 PSI, this valve is ideal for modern systems operating on R22, R410A, and R32 refrigerants.

Consistency in Every Unit
Weighing 239.00 grams ± 1.00 gram, each valve is individually inspected for precision and build quality before packing.

Applications

• Vertical-line connections in 5/8" split AC units

• Straight-type valve assembly for outdoor A/C units

• HVAC systems running R22, R410A, or R32 refrigerants

Packaging
Safely packed in our custom cardboard box for reliable shipping and storage.

Note: Intended only for use in refrigerant gas systems. Not suitable for water or other fluids.
